What's new! New blue high-power laser diodes for many ideas!

(PresseBox) (Sinzing, )

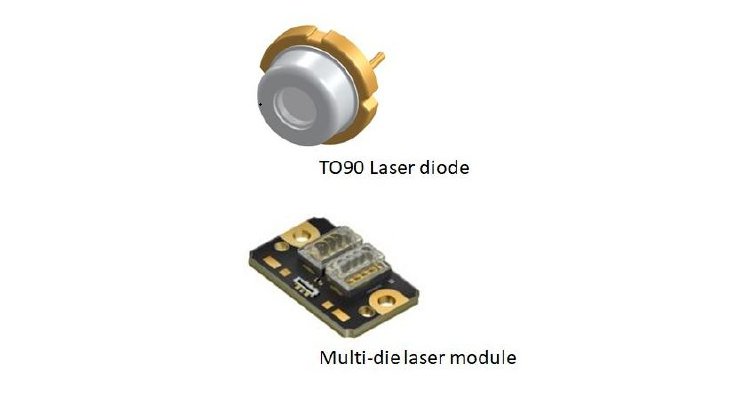

The PLPT9 450MD_E is a 450 nm multi-mode laser diode in 7W optical output power for manufacturers and system integrators for a variety of applications where powerful light is needed.

Typical applications: Optical measurement systems, laboratory equipment, material processing, factory automation, projection and displays, pumping of solid-state-lasers, ...

The PLPT9 450MD_E laser diode is available in different power classes & wavelength groups from 434 - 470 nm.

Basic technical data:
  • Peak wavelength: 450 nm (blue)
  • 5-7 W optical output power depending on wavelength
  • Emission mode is multi mode
  • Integrated ESD diode
  • Housing: TO90
High power multi-die Laser PLPM7 455QA_LL in 42W optical output power.

Blue emitting high power multi-die edge emitting laser including beam collimation for all kind of highest power application requiring phosphor conversion or direct emitting blue laser light emission.

Main applications are entertainment, outdoor and industrial lighting, display and projection.

Basic technical data:
  • Peak wavelength: 455 nm (blue)
  • 42 W optical output power
  • Emission mode is multi mode
  • Integrated ESD diode
  • Top emitter package
We are happy to support you with design-in consulting, sample provision, and the definition of stable delivery concepts for series applications.

Want to get more information? Contact us directly!

Website Promotion

Website Promotion

Chips 4 Light GmbH

Chips 4 Light GmbH is aimed at companies that have special requirements for optoelectronic components and are looking for customer-specific solutions, including for small and medium quantities. The company sells LED chips, LEDs, detectors and laser products from leading manufacturers and develops special optoelectronic components and customer-specific modules - with its own ASIC if required.

We manufacture prototypes and offer services such as measuring laser diodes and sorting LED chips onto various carriers - all according to customer specifications!
