Many lighting applications work with the dominant wavelength (lambda dom) as standard. However, in numerous technical applications – even in the visible spectral range – this variable is not ideally suited.
Especially in sensory applications, the exact spectral characteristics are particularly important. Here, grouping according to peak wavelength or centroid wavelength is often much more meaningful and closer to the application.
Our offer: Precise typing – tailored to your application.
Chips 4 Light GmbH is one of the few suppliers to offer you the option of flexibly typing LED chips according to various wavelength parameters:
Out of our portfolio:

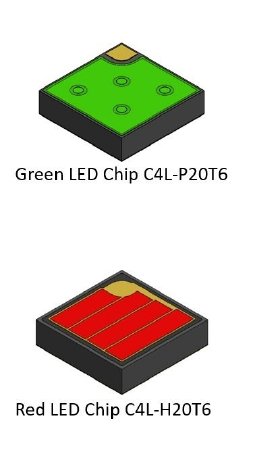

LED Chip in green (by centroid wavelength and mW)
C4L-P20X2
LED Chip in red (by centroid wavelength and mW)
C4L-H20T6
Other LED chips on request, please contact us!
Your advantage as customer:
More precise selection of the chips required for demanding sensor and measurement applications
Higher process stability, as the spectral parameters are more precisely tailored to your application.
Definitions:
The dominant wavelength is a colorimetric term. It describes the wavelength of monochromatic (single-color) light that would have the same perceived color as the given light source.
The peak wavelength is the wavelength at which the spectral distribution of a light source spectrum reaches its maximum—in other words, the point at which the light source emits most strongly.
The centroid wavelength is the intensity-weighted average of the wavelengths – i.e., the “center of gravity” of the spectrum.
Further technical details can be found on our website:
LED Chips » Chips 4 Light
LED » Chips 4 Light
LED Modules » Chips 4 Light
Especially in sensory applications, the exact spectral characteristics are particularly important. Here, grouping according to peak wavelength or centroid wavelength is often much more meaningful and closer to the application.
Our offer: Precise typing – tailored to your application.
Chips 4 Light GmbH is one of the few suppliers to offer you the option of flexibly typing LED chips according to various wavelength parameters:
- Lambda dom according to classic color standard
- Lambda peak
- Lambda centroid
- Optionally also in mW instead of lumens
Out of our portfolio:
LED Chip in green (by centroid wavelength and mW)
C4L-P20X2
LED Chip in red (by centroid wavelength and mW)
C4L-H20T6
Other LED chips on request, please contact us!
Your advantage as customer:
More precise selection of the chips required for demanding sensor and measurement applications
Higher process stability, as the spectral parameters are more precisely tailored to your application.
Definitions:
The dominant wavelength is a colorimetric term. It describes the wavelength of monochromatic (single-color) light that would have the same perceived color as the given light source.
The peak wavelength is the wavelength at which the spectral distribution of a light source spectrum reaches its maximum—in other words, the point at which the light source emits most strongly.
The centroid wavelength is the intensity-weighted average of the wavelengths – i.e., the “center of gravity” of the spectrum.
