Environmental solution for ergonomic workplaces
Ket-Twist 660-3053 quick crank lifting system from KettererFurtwangen, )

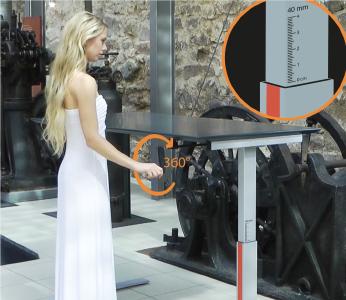

The new, purely mechanical Ket-Twist 660-3053 crank lifting system from Ketterer allows a maximum travel of 660 mm. The table can be adjusted quickly, because each crank rotation creates 40 mm of height difference. Thus any table height between 590 and 1,250 mm can quickly and easily be set with just a few turns. The new crank lifting system meets the European sit-stand norm DIN EN 527-1 for ergonomic workstations and offers even tall people an individually ideal working height. The Ketterer lifting system runs extremely smoothly even under loads: The working surface can be easily and effortlessly adjusted up to a recommended load of a maximum of 40 kg. The lifting system is self-braking and holds the table in its fixed position up to a maximum table load of 120 kg.
Installation and adjustment of the table height takes place without electricity, only manpower is required. And here again, the smooth Ket-Twist lifting system from Ketterer is extremely economical, because it can be easily operated without much effort. “Due to its manual operation, the Ketterer system makes an important contribution to energy savings and protecting the environment,” CEO Odin Jäger points out. Another advantage of the mechanical drive: The furniture is independent of electrical connections can be used flexibly anywhere in the work environment. That allows architects and interior designers much greater design freedom for spatial planning.
Ketterer meets the individual requirements of its customers during construction and assembly. The Ket-Twist 660-3053 is faster and easier to install than comparable products on the market. In addition, it is modular. An advantage of this design: The height-adjustable tables can be sent with minimum packing dimensions.
“Our high-quality mechanical design uses a double-telescopic lifting spindle and a similarly double-telescopic gas spring unit, explains CEO Odin Jäger. The high-quality production and material selection makes the Ketterer crank lifting system extremely durable and suitable for everyday use. Gear ratio, spindle pitch, and gas spring force are perfectly matched: Spring assemblies or counterbalances, as used in comparable systems, are unnecessary. This is how Ketterer creates the sleek design and thus the small packaging units of the Ket-Twist 660-3053 quick crank lifting system.
