Mini-PC for control cabinets & machine control
The BRICK Pro, tested according to IEC 61373 for shock and vibration resistance, can be used in machines or production lines where movement and vibration may occur during operation. Its passive cooling system allows it to withstand dust and/or moisture that may be present in such environments.
The industrial Mini-PC is also ideally suited for control cabinets thanks to its wide range power input of 12~24V. In vehicle applications where the power supply is already secured and the temperature range is stable, the BRICK Pro can also be used.
4x HDMI 2.0, 4x COM, 8x USB

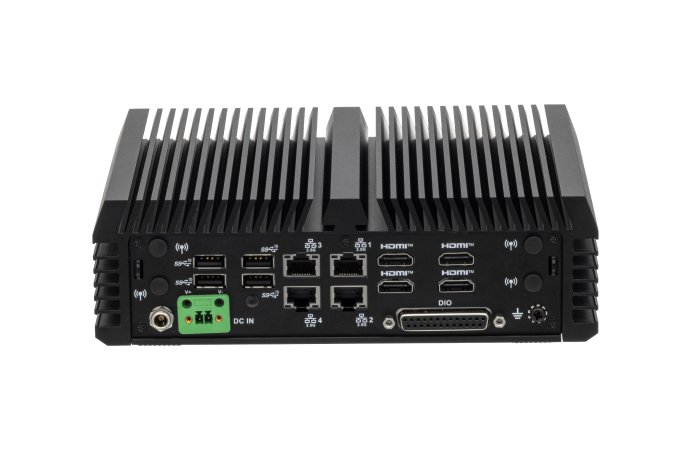

The BRICK Pro features a variety of ports in its compact case, measuring 65 x 215 x 155 mm (H x W x D). These include four HDMI 2.0 ports, which, combined with the integrated Intel® Iris® Xe graphics unit, can display content in a resolution of 4096 x 2304 @ 60Hz (4K) on up to four independent screens simultaneously. Additionally, the Mini-PC is equipped with four 2.5 Gbps LAN ports, four COM RS232/422/485 ports, and two audio ports (Mic-In and Line-Out), making it ready for a wide range of applications.
A total of eight USB ports – four USB 2.0 and four USB 3.2 Gen 2x1 – ensure the connection of external peripherals as needed for different applications.
Extended temperature range, 4G, and WiFi
As expected from a true "BRICK" model, the BRICK Pro has an extended temperature range from 0°C to +50°C. It can also be optionally equipped with a WiFi module and a 4G module. Depending on the requirements, the Mini-PC can come with an operating system, with options including Ubuntu, Windows 11 Pro, and Windows 10 IoT.
The BRICK Pro is an industrial Mini-PC that combines a compact case with a variety of interfaces and powerful internal components. It excels in applications where space is limited but high performance is required. The system is now available and can be configured and ordered according to your preferences at www.spo-comm.de.
Key features and technical data at a glance:
- CPU: Intel® Core™ i5-1335UE (2x 1.3 GHz Performance Cores, 8x 0.8 GHz Efficiency Cores)
- GPU: Intel® Iris® Xe Graphics (integrated)
- RAM: Up to 32 GB DDR5
- SSD: Up to 2TB M.2 NVMe PCIe 4.0
- Max. resolution: 4096 x 2304 @ 60Hz (4K)
- 4 independent displays

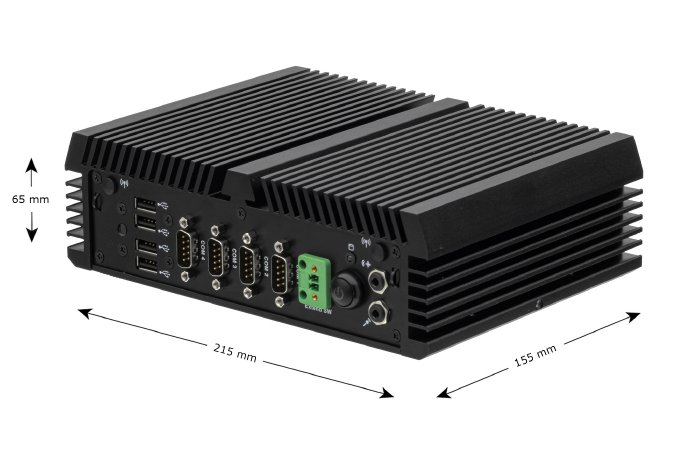

- Dimensions (H x W x D): 65 x 215 x 155 mm
- Ambient conditions: -0°C to +50°C at 10-90% non-condensing humidity
- 4x USB 2.0
- 4x USB 3.2 Gen 2x1
- 4x HDMI 2.0
- 4x 2.5 Gbps LAN

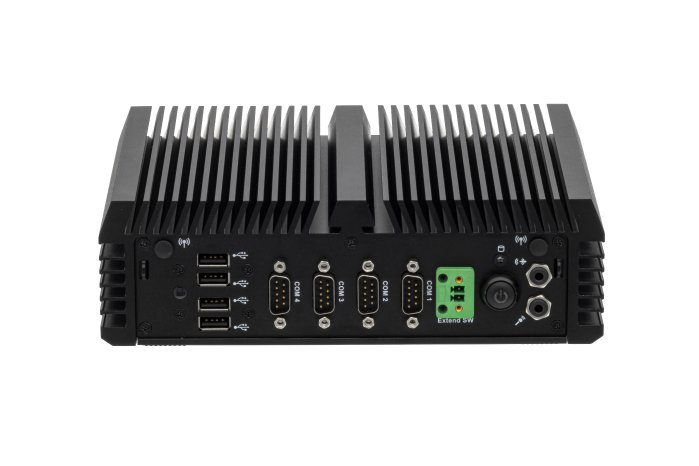

- 4x COM RS232/422/485
- 2x Audio (Mic-In and Line-Out)
