New CAD Plugins to Calculate Machine Elements

GWJ Technology GmbH introduces new versions of its eAssistant CAD plugins for different CAD systems. The plugins generate automatically 3D models of various machine elements (e.g., shafts or cylindrical gears) based on the calculation.

Braunschweig, (PresseBox) - The market-leading web-based calculation software eAssistant - the engineering assistant - provides various calculation modules based on DIN and ISO standards (shafts, bearings, shaft-hub-connections, cylindrical gears, bevel gears, timing belts, springs, etc.). In order to increase the efficiency and quality in the design and development process, GWJ has developed plugins to combine calculation and CAD. New versions of CAD plugins for Autodesk Inventor, Solid Edge and SolidWorks are now available.

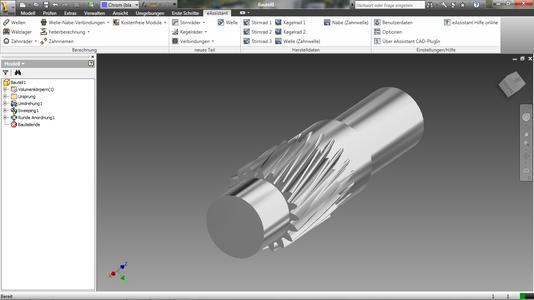

The new integrated calculation module for involute splines allows to create involute spline shaft and hub profiles based on calculation. It provides the same functions as spur gears (e.g., single part creation, creation of gearing on existing part with or without tool run-out, allows to add manufacturing data to drawing).
New menu items are also available. In addition to use splines for the tooth form, the new version allows to work with circular arcs. This supports the eroding process of gearings. The accuracy of the tooth form can be controlled by changing a minimum distance between points. In order not to create the entire number of teeth, the number of teeth can be specified for the output. In case the shaft (or appropriate part) is parallel to one of the main planes, the tool run-out can be created now (Autodesk Inventor/SolidWorks).
For more information, please contact GWJ by phone: +49 (0) 531 129 399-0 or email: as well as or join us during Hannover Messe 2011 in Hall 25, Stand G05.

GWJ Technology GmbH

GWJ Technology´s main focus is the development of standard calculation software for mechanical engineering as well as individual calculation and configuration tools that include CAD data in order to optimize technical sales processes.
It is our goal to support our customers in any way we can help. A close co-operation and state-of-the-art technology reflect our commitment to give our customers the best possible service and advice to obtain new competitive advantages. Professional compentence, our demand for high quality and an excellent customer service are the key factors in our business philosophy.
