CONEC SnapLock retrofit sets

Tool-free, secure, fast - the smart solution for D-SUB interfaces

(PresseBox) (Lippstadt, )

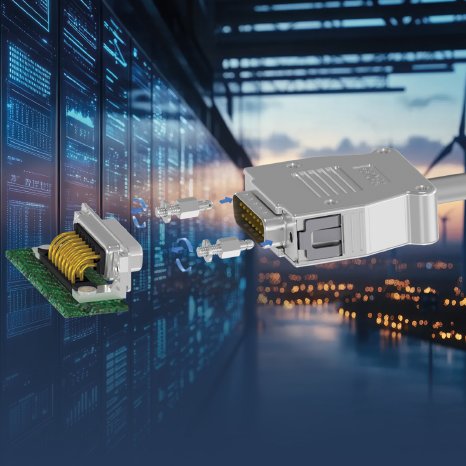

The CONEC SnapLock locking system for D-SUB connectors and hoods enables a fast and secure connection and locking mechanism without additional screws. A spring clip integrated into the hood locks onto a latch pin mounted on the mating connector.

The SnapLock system is specifically designed for applications requiring a robust and vibration-resistant connection. With the option to retrofit using a bolt kit, the system can also be used with standard D-SUB connectors. This opens up a wide range of applications, such as in automation technology, measurement technology, and medical engineering.

The key benefits of the SnapLock system:
  • Time savings thanks to tool-free assembly and disassembly
  • Enhanced process reliability with a defined locking mechanism
  • Vibration resistance, even in demanding environments
  • Retrofit capability for existing D-SUB connectors

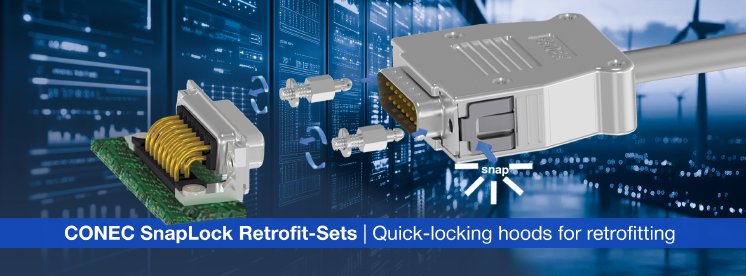

With the new CONEC RetroFit Sets, the SnapLock system is now available as a ready-to-use solution. The sets are offered in 9- and 15-pos versions of the metallized SnapLock hood, including a kit with threaded bolts for rear panel mounting, and are available either as single ended or connection cable. The pre-assembled sets are available in three standard lengths: 1.8 m, 3 m, and 5 m.

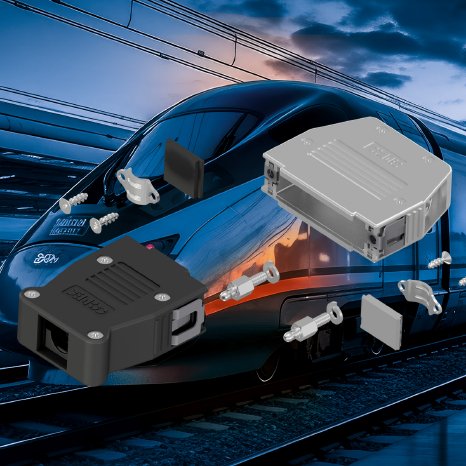

Also newly available are the SnapLock Bundles, which include the SnapLock hood (available in black or metalized) along with the necessary mounting accessories for retrofitting existing systems.The SnapLock Bundles are offered from 09- to 50-pos.

Advantages:
  • Quick and easy locking and unlocking
  • Secure locking / high retaining force
  • Can be mounted faster than a standard screw lock
  • Shock and vibration resistant
  • Models available in plastic black and plastic metallised
  • Front & side cable entries
  • Hood to-hood connection via locking kit
  • Connector with integrated bolt
  • Integrated bolt cannot get lost
  • Existing systems may be retrofit using a screwable bolt kit
Fields of application:
  • Drive technology
  • Automation technology
  • Housing and device connection
  • Communication technology
  • Mechanical Engineering
  • Process automation and Process control
  • Transport technology
