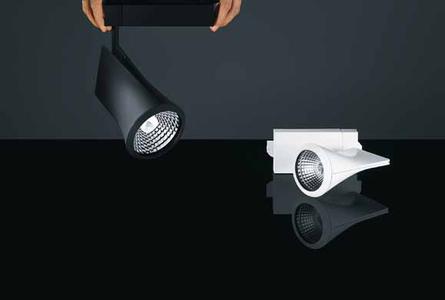

With the Iyon LED spotlight range, Zumtobel is breaking new ground in the area of efficient high-quality illumination of retail areas. The spotlight's sophisticated design accommodates a unique lens/reflector system that allows for high-precision, uniform accent lighting with a variety of beam patterns. With its excellent colour rendition properties, high-power LED modules and high energy efficiency, Iyon is a perfect tool for lighting and presenting goods in shops and showrooms. The Iyon spotlight range is available in two design sizes for various wattages in Stable White and Tunable White and will be presented at EuroShop for the first time.
Zumtobel developed the Iyon LED spotlight in collaboration with the Austrian architects' studio of Delugan Meissl Associated Architects. The clear lines of the die-cast aluminium housing in particular give the spotlight its elegant look, combined with high functionality.
Roman Delugan describes the design of lyon as a flowing synthesis of object and medium: "We sought to create a spotlight with a maximum range of applications. Its design, surface finish and function-focused, individually controllable lighting technology live up to this ambition in terms of both esthetics and function." The special design of the die-cast aluminium housing allows for purely passive cooling of the LED modules, ensuring a long service life.
With a luminaire efficiency of up to 65 lm/W, Iyon cannot fail to impress also in a direct comparison with conventional spotlights. Owing to the use of high-quality LED modules, the LED spotlight provides very good lighting quality: Iyon with a stable colour temperature of 3000 K or 4000 K is available as Advanced Stable White version providing optimum colour quality and stability; as Essential Stable White version, it provides high-power pinpoint lighting accents. With luminous flux levels of 1100 lm, 2000 lm and 3200 lm, the spotlight is an efficient alternative to HIT luminaires up to 70 W. The spotlight range boasts constant lighting quality, a maintenance-free service life of up to 50,000 h at 70% luminous flux, and extra energy saving potential as the spotlights can be dimmed.
Besides the versions mentioned above, Tunable White models are available with two power ratings as well: at high colour quality of Ra 90, the colour temperature can be continuously adjusted in the range between 2700 K and 6500 K. For frequently changing product ranges, flexible adjustment in the white light range allows for a lighting solution perfectly matched to the products on display - enhancing colours, improving perception and creating special atmospheres. Moreover, thanks to IR and UV-free light, even sensitive materials like textiles or cosmetics can be illuminated with high power and from a short distance.
All Iyon spots have aluminium-sputtered precision reflectors made of polycarbonate, which provide brilliant accents and a variety of beam patterns, ranging from narrow-beam to wideangle. The Advanced Stable White and Tunable White versions are also fitted with a patented mixing chamber lens for an excellent mix of colours.
The extensive spotlight range - including two design sizes, Stable White and Tunable White versions, reflectors that can be replaced without the use of any tools, and other accessories - provides the appropriate solution for a wide variety of lighting tasks. Iyon will be available for installation in 3-phase tracks and as a semi-recessed spotlight as well.
Dimming of brightness levels from 10-100% and the adjustment of a variety of colour temperatures are possible either via DALI or directly on the spotlight's track box, by means of a rotary regulator. The spotlight is available in a matt black and matt white finish as standard. A five-year guarantee is granted for the luminaire range including control gear and LED. Stable White versions of Iyon will be available from May 2011. Tunable White will be available from autumn 2011.
Zumtobel developed the Iyon LED spotlight in collaboration with the Austrian architects' studio of Delugan Meissl Associated Architects. The clear lines of the die-cast aluminium housing in particular give the spotlight its elegant look, combined with high functionality.
Roman Delugan describes the design of lyon as a flowing synthesis of object and medium: "We sought to create a spotlight with a maximum range of applications. Its design, surface finish and function-focused, individually controllable lighting technology live up to this ambition in terms of both esthetics and function." The special design of the die-cast aluminium housing allows for purely passive cooling of the LED modules, ensuring a long service life.
With a luminaire efficiency of up to 65 lm/W, Iyon cannot fail to impress also in a direct comparison with conventional spotlights. Owing to the use of high-quality LED modules, the LED spotlight provides very good lighting quality: Iyon with a stable colour temperature of 3000 K or 4000 K is available as Advanced Stable White version providing optimum colour quality and stability; as Essential Stable White version, it provides high-power pinpoint lighting accents. With luminous flux levels of 1100 lm, 2000 lm and 3200 lm, the spotlight is an efficient alternative to HIT luminaires up to 70 W. The spotlight range boasts constant lighting quality, a maintenance-free service life of up to 50,000 h at 70% luminous flux, and extra energy saving potential as the spotlights can be dimmed.
Besides the versions mentioned above, Tunable White models are available with two power ratings as well: at high colour quality of Ra 90, the colour temperature can be continuously adjusted in the range between 2700 K and 6500 K. For frequently changing product ranges, flexible adjustment in the white light range allows for a lighting solution perfectly matched to the products on display - enhancing colours, improving perception and creating special atmospheres. Moreover, thanks to IR and UV-free light, even sensitive materials like textiles or cosmetics can be illuminated with high power and from a short distance.
All Iyon spots have aluminium-sputtered precision reflectors made of polycarbonate, which provide brilliant accents and a variety of beam patterns, ranging from narrow-beam to wideangle. The Advanced Stable White and Tunable White versions are also fitted with a patented mixing chamber lens for an excellent mix of colours.
The extensive spotlight range - including two design sizes, Stable White and Tunable White versions, reflectors that can be replaced without the use of any tools, and other accessories - provides the appropriate solution for a wide variety of lighting tasks. Iyon will be available for installation in 3-phase tracks and as a semi-recessed spotlight as well.
Dimming of brightness levels from 10-100% and the adjustment of a variety of colour temperatures are possible either via DALI or directly on the spotlight's track box, by means of a rotary regulator. The spotlight is available in a matt black and matt white finish as standard. A five-year guarantee is granted for the luminaire range including control gear and LED. Stable White versions of Iyon will be available from May 2011. Tunable White will be available from autumn 2011.
