For decades customers from all over the world have been placing their trust in Weidmüller enclosures - a synonym for outstanding competence, quality and complete enclosure solutions; that also applies to the Klippon® STB series, which Weidmüller is now enhancing by offering a sheet steel painted (RAL7032) version and has been technically improved to be meet with the latest standards DIN 62208 which apply to empty enclosure products.

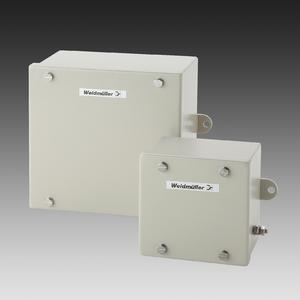

The new Klippon® STB (Small Terminal Box) sheet steel range is offered as heavy duty general purpose enclosure and is a complimentary product to the currently available stainless-steel versions. In fact, many of the design features of this new range have been integrated from the successful Klippon® STB stainless steel product.
Available in eight different standard sizes (120 mm x 120 mm x 80 mm up to 250 mm x 400 mm x 130 mm) and with an ingress protection of IP66. The sheet steel enclosures are finished with a textured powder paint for optimum protection. As with the stainless steel versions of the existing Klippon® STB range, a high temperature silicone gasket has been included and to prevent the loss of the cellular structure of the enclosure sealing, gasket compression control has been incorporated into the enclosure design. This protects against over compression of the gasket material and the potential for any loss in IP performance. The temperature range is from -50° C to +120° C. Despite being design for general purpose applications, this heavy duty sheet steel enclosure has an impact resistance of 10 J. A welded internal and external earth stud (M6) is fitted to meet the earthing requirements and an earthing screw is also installed into the completely removable lid as a standard feature. Mounting lugs are pre-fitted as standard and the enclosure has been vibration and shock tested to be secure in operation. The Klippon® STB range is further enhanced with an extensive programme of accessories, which among other articles includes cable entries/ adapters/ blanking plugs/ sealing washers/ lock nuts and breather plugs. Weidmüller supplies the enclosure ready for installation. Customer-specific solutions are available on request.
For more information: www.weidmueller.com
