Weidmüller OMNIMATE Power - LL 6.35 PCB terminals: unrestricted use up to 600 V as per UL-1059 approval in 6.35-mm pitch

90° conductor outlet and modular design (2 to 12 pin)

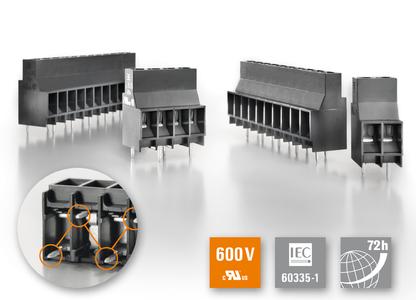

Weidmüller OMNIMATE Power: The LL 6.35 PCB terminals provide unrestricted use up to 600 V in accordance with UL-1059 approval in 6.35-mm pitch. Detail: Offset solder pins: these have many different uses, including to obtain the required air and creep distances for 600-V approval in accordance with UL 1059.
(PresseBox) ( Detmold, )
With OMNIMATE Power LL 6.35, Weidmüller presents a power terminal in 6.35 mm pitch dimension. The new high-performance PCB terminal with a tried and tested clamping yoke screw connection is suitable for wire cross-sections of 0.18 to 6 mm² (AWG 26-10). The LL 6.35 offers the smallest pitch on the market which complies with UL 1059 - 600 V (Class C) and incorporates Weidmüller's renowned high-calibre product characteristics. The power terminal for the PCB meets all approval criteria without restrictions and has a modular (2 to 12 pin), 90° conductor outlet design. The OMNIMATE Power PCB terminal LL 6.35 is also particularly safe and constructed to be extremely compact in a 6.35 mm pitch. An outstanding feature of the product are the offset solder pins: These allow the required air and creep distances to be reached for the 600-V approval in accordance with UL 1059. Manufactured from Wemid insulating material, the power terminal complies with the highest standards; Wemid is creep-resistant in accordance with CTI 600 and fire-resistant in accordance with UL 94-V0. With a continuous operation temperature of 120°C, Wemid exceeds the standard value of PA (100°C) by 20 K. Users also obtain a maintenance-free solution with proven clamping yoke connection technology for conductors up to 6 mm², since Weidmüller's clamping yoke connection system with WIRE GUARD and WIRE READY makes a vibration-resistant and maintenance-free connection. The terminal also features the globally compatible plus-minus screw, which allows for a frictional connection and can be operated with all current manual tools and power tools. The OMNIMATE Power PCB power terminal is ideally suited for connecting devices in drive technology applications, for power supplies, solar inverters and mains power filters.

Weidmüller 72-hr sample service - a global promise

When designing PCBs and devices, development engineers eventually reach the point when they have to find the ideal connectivity components for their applications. With Weidmüller's sample service, you won't lose any time; Weidmüller delivers samples of your device connection components and electronics housing to you within 72 hours, regardless of your location - the OMNIMATE Power - PCB terminal LL 6.35 too.

Sample service: www.sample-service.com

Additional information: www.weidmueller.com
