Texim Europe offers the MTS360, a contactless rotary sensor from PIHER. The MTS360 provides a true breakthrough in contactless sensor technology by combining a through-shaft design with 360° absolute position feedback in an ultra-miniature size. The result is the smallest fully featured rotary sensor on the market with reliability up to 50 million cycles.

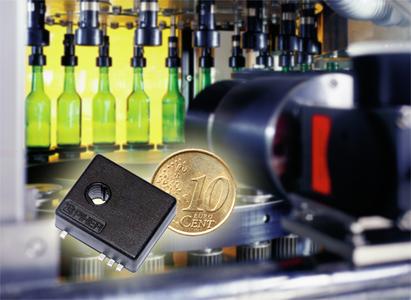

With its tiny size of only 6 x 17 x 18mm (hxwxl), engineers can now integrate a fully featured rotary sensor directly on their PCB without the packaging issues that typically accompany encoders or other absolute position devices.
The MTS360 relies on patented Hall effect technology to enable for the first time true non-contacting through-hole shaft sensing using standard SMD features. The offset through-hole accommodates the vacuum pick up tool, allowing use in automated SMD assembly systems. The standard model features a 4mm double D-flat shaft and an 8 pad SMD footprint that is compatible in most reflow soldering systems.
The MTS360 offers electrical angles up to 360° with no dead band and linearity as low as ±0.5%. Rated for use at -40°C to +150°C, the sensor can be programmed with full scale output with angles shorter than 360 degrees. Output is selectable between Analog, PWM up to 12 bits
or Serial Protocol (SPI) up to 14 bits and includes a second output channel to provide a programmable switch signal. A redundant version with a dual core sensor in the same package is also available.
This ultra-miniature MTS 360 Rotary Position Sensor is ideal in optical imaging stabilization and precision biomedical devices, optical zoom devices, consumer electronics, instrumentation, HVAC systems, automotive control systems, marine controls, fork lift trucks, farm equipment, cranes,
low speed motor feedback, valve position sensors and robotic and automation feedback system.
