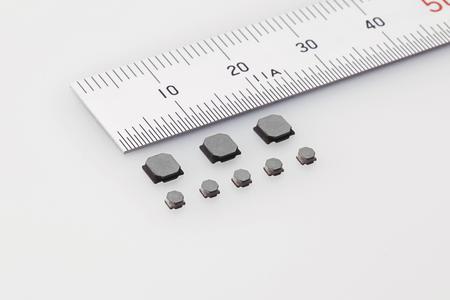

TOKYO, September 5, 2013 – TAIYO YUDEN CO., LTD. has developed two new series of its metal power inductors MCOILTM by adding high-reliability categories to MDMK2020 (2.0 x 2.0 x 1.2mm) and MDMK4040 (4.0 x 4.0 x 1.2mm.) The height value indicated for both products is the maximum value and
has been developed in response to the strong demand from the automotive electrical devices and the industrial equipment market.
These products are power inductors for choke coil applications in the power supply circuits of automotive electrical devices such as telematics and communication infrastructure such as base station communication devices, as well as industrial equipment such as factory automation equipment, industrial
robots, and M2M devices. Each product has undergone evaluation tests corresponding to AEC-Q200, a reliability testing standard for automotive electronic parts.
Technology Background
In the recent years, more and more vehicles are being equipped with functions that were not seen in the past such as telematics. This has resulted in an increase in the number of ECUs (Electronic Control Unit) mounted for control of each function and the installation of several electronic components with highly
efficient power supply circuits in order to improve energy-saving performance. The electronic components installed in industrial equipment, similar to vehicle equipment discussed above, are required to have high reliability such as high temperature operation, long life, and a high quality.
To this end, TAIYO YUDEN has been working toward expansion of its metal power inductor MCOILTM product line-up that has been highly evaluated for use in consumer products such as smartphones. As compared to the general metal composite material, the metallic magnetic material used in MCOIL™ does not include an organic binder and has a high permeability and insulation property. This makes it suitable for use at high temperatures, thus satisfying the needs of a high-reliability market.
We have added an AEC-Q200 qualified product line-up with a usage temperature range of -40°C to 125°C to the metal power inductors MCOIL™. In addition to this, we will continue to sequentially expand the line-up of products in order to meet the demands from the high-reliability market for products that can
withstand temperatures up to 150°C, including automobiles. Moreover, in order to meet rapidly increasing demands, we will be accelerating the increased
production plan of the metal power inductor MCOIL™ series from September 2013, and we have achieved production rates of a total of 300 million units per month. By the end of March 2014, the production rate is expected to increase to 400 million units.
*“MCOIL” is a registered trademark or trademark of TAIYO YUDEN CO., LTD. used both for Japan and other countries. These products will be exhibited in the TAIYO YUDEN booth at “CEATEC JAPAN 2013” to be held at the Makuhari Messe (Mihama-ku, Chiba-City, Chiba Prefecture) from the 1st of October of this
year.
■Application
Choke coil applications in the power supply circuits of automotive electrical devices such as infotainment systems and body, comfort, etc., communication infrastructure such as base station communication devices, as well as industrial equipment such as factory automation equipment, industrial robots, and M2M devices.
[Main characteristics of the high-reliability metal power inductor MCOIL™ products]
High-reliability MDMK2020 series
P a r t N u m b e r: MDMK2020T ***MM V (*** is the nominal inductance value.)
N o m i n a l i n d u c t a n c e: 0.47 μH to 4.7 μH
St a n d a r d e x t e r n a l d ime n s i o n s: 2.0 ± 0.15 × 2.0 ± 0.15 × Height 1.2 mm (The height value is the maximum value.)
R a t e d c u r r e n t ( t y p ): 1050 mA to 2450 mA
High-reliability MDMK4040 series
P a r t N u m b e r: MDMK4040T ***MF V (*** is the nominal inductance value.)
N o m i n a l i n d u c t a n c e: 0.47 μH to 2.2 μH
St a n d a r d e x t e r n a l d ime n s i o n s: 4.0 ± 0.2 × 4.0 ± 0.2 × Height 1.2 mm
(The height value is the maximum value.)
R a t e d c u r r e n t ( t y p ): 2900 mA to 5400 mA
