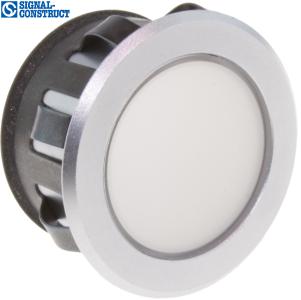

LED snap-in spot Luxofix from Signal-Construct

Minimal installation depth, easy installation

(PresseBox) ( Niefern-Öschelbronn, )
Smallest installation dimensions of just 32 mm with a depth of 22.5 mm! Fully made in Germany!

Foolproof connection "plug and play" with the proven reverse polarity-proof system cables of our SiLux® LED spot systems.

Thanks to the snap-in mounting, the Luxofix LED spot from Signal-Construct is not only assembled in a few seconds, but also guarantees a secure hold after it has been snapped in, starting from panel thicknesses of 2 mm up to solid material.

The heat emission of the lamp is reliably below 40° C even in continuous operation, so that there are no concerns about the installation in wooden or plastic constructions.

This LED snap-in-spot is not only suitable as decorative lighting in the home area, but also for caravan and boat building. Thanks to the IP67 sealing on the front, nothing stands in the way of installation in damp rooms or outdoors on patios and balconies.

The spots are available in 6 basic luminous colours. For warm white, special colour temperatures are also available on request.

The use of our EFGB system cable series ensures simple and safe installation, even for laypersons. The single-colour versions are connected with the same cables as the proven spots of our SiLux® series MF, MT and MLP, and are thus fully compatible and can be combined. Only one supply line to the power supply is required, the lines to other spots are simply looped through one after the other.

The Luxofix QMFS30 series is available for operating voltages of 12V DC or 24V DC, each with 1.7 watts and up to 100 lumens (5000K). Dimmable when using suitable power supplies.

Solid brass housing, optionally black, matt or gloss chromium-plated, as well as white powder-coated. Retaining clip made from black-oxide spring steel.

New! Also available in full colour RGB with a maximum of 1.3 watts (white).

LED comfort made in Germany. By Signal Construct.

Signal-Construct elektro-optische Anzeigen und Systeme GmbH

Signal-Construct has been an innovative owner-managed family company with a focus on the development and manufacture of opto-electronic parts and components for more than 40 years.

The wide range of products offers high-quality, customer-oriented and sustainable solutions for a wide range of applications, whereby a profound know-how is available due to a deliberately high level of vertical integration.

The focus is on illuminations for controls and indicator lights in the industrial and aviation sector, reading lights for rail vehicles as spots or with flexible metal tubing, LED spots for accent lighting, and status indicators for front and PCB installation.

The production program is supplemented by standard and customer-specific light guide components and an area of LED processing, in which the processing of THT-Visible as well as IR and photodiodes or the reworking into SMT-processable components is possible.
