Seica's innovative test solutions are being used across the globe to improve quality, increase productivity and save money in automobile, military and consumer markets. We will showcase the following systems and solutions at Productronica 2009:
The Pilot V8 represents the latest frontier in flying probe test technology, and is the complete solution for those who want maximum performance: the highest test speed, test coverage and flexibility, whether they are testing prototypes, manufacturing lots, or repairing any type of board:
More on V8 Flying Probe Test System

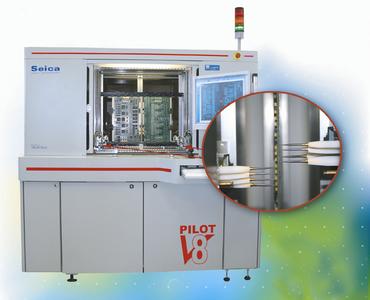

The award winning V8 is the latest addition to Seica's complete line of Flying Probe Test systems and represents a radical departure from traditional flying prober designs. The Pilot V8's vertical architecture enables high speed, high precision probing on both sides of the UUT simultaneously, offering the maximum in test coverage and flexibility in a compact, ergonomic package. It is equipped with eight electrical flying test probes (four on each side), two Openfix capacitive and two power flying probes, plus two CCD cameras (one on each side). With 14 mobile resources available to test the UUT, Pilot V8 has a range of in-circuit and functional test capabilities. In addition, like other Seica flying probe solutions, the Pilot V8 can implement a series of net-oriented measurement techniques, based on measurements executed on the board signal nets. These new test methods cut the time required for in-circuit test by lowering the number of measurements required, maintaining the same level of fault coverage and valuable diagnostic information. The mobile power probes are another innovation that enable the power-up of the UUT without requiring additional fixed cables. Seica's Pilot V8 can also execute parallel tests on two UUTs effectively doubling test capacity with respect to a four-probe system.
PTE 100 - Intelligent Break-Out Box
Based on Seica's standard VIP architecture, including the DSP ACL module, the PTE-100 combines the features of different instruments like voltage generator, current generator, waveform generator, voltmeter, amperometer, frequency meter and oscilloscope, with the typical features of an automatic test system. It is also equipped with a mid-range power relay matrix (500V@2A) with switching and interrupt functions of up to 256 input/output channels.
The PTE-100 is ideal for diagnosing and identifying in field faults in the electronic systems aboard helicopters, trains, planes and systems made up of electronic modules interconnected through cables equipped with break out connectors. The PTE-100 is connected between two modules to monitor the activity present on the interconnect cable, and can execute stimuli/measurement operations as well as simply connect/interrupt every single wire of the cable itself, to facilitate the diagnosis of the problem by an expert user.
Selective Soldering System Firefly
Seica's Firefly concentrates all the power and precision of laser technology into the automated selective soldering process of electronic boards and assemblies. Firefly integrates Seica's easy to use VIP(TM) software, which includes a completely new automatic program development environment that drastically reduces the time needed to setup soldering programs.
Equipped with a SMEMA compatible board conveyor system and fiducial recognition, Firefly is easily integrated into a fully automated production line. Sophisticated algorithms and fast loop control enable automatic management of printed circuit board characteristics and environmental factors, resulting in a high level of soldering quality and repeatability. Thermal control, so essential to the soldering process, is guaranteed by an integrated temperature control system that provides continuous feedback during the soldering process and displays thermal profiles clearly in real time, then stores the profiles and images of each soldered point, ensuring complete traceability of the soldering process.
The Pilot V8 represents the latest frontier in flying probe test technology, and is the complete solution for those who want maximum performance: the highest test speed, test coverage and flexibility, whether they are testing prototypes, manufacturing lots, or repairing any type of board:
More on V8 Flying Probe Test System
The award winning V8 is the latest addition to Seica's complete line of Flying Probe Test systems and represents a radical departure from traditional flying prober designs. The Pilot V8's vertical architecture enables high speed, high precision probing on both sides of the UUT simultaneously, offering the maximum in test coverage and flexibility in a compact, ergonomic package. It is equipped with eight electrical flying test probes (four on each side), two Openfix capacitive and two power flying probes, plus two CCD cameras (one on each side). With 14 mobile resources available to test the UUT, Pilot V8 has a range of in-circuit and functional test capabilities. In addition, like other Seica flying probe solutions, the Pilot V8 can implement a series of net-oriented measurement techniques, based on measurements executed on the board signal nets. These new test methods cut the time required for in-circuit test by lowering the number of measurements required, maintaining the same level of fault coverage and valuable diagnostic information. The mobile power probes are another innovation that enable the power-up of the UUT without requiring additional fixed cables. Seica's Pilot V8 can also execute parallel tests on two UUTs effectively doubling test capacity with respect to a four-probe system.
PTE 100 - Intelligent Break-Out Box
Based on Seica's standard VIP architecture, including the DSP ACL module, the PTE-100 combines the features of different instruments like voltage generator, current generator, waveform generator, voltmeter, amperometer, frequency meter and oscilloscope, with the typical features of an automatic test system. It is also equipped with a mid-range power relay matrix (500V@2A) with switching and interrupt functions of up to 256 input/output channels.
The PTE-100 is ideal for diagnosing and identifying in field faults in the electronic systems aboard helicopters, trains, planes and systems made up of electronic modules interconnected through cables equipped with break out connectors. The PTE-100 is connected between two modules to monitor the activity present on the interconnect cable, and can execute stimuli/measurement operations as well as simply connect/interrupt every single wire of the cable itself, to facilitate the diagnosis of the problem by an expert user.
Selective Soldering System Firefly
Seica's Firefly concentrates all the power and precision of laser technology into the automated selective soldering process of electronic boards and assemblies. Firefly integrates Seica's easy to use VIP(TM) software, which includes a completely new automatic program development environment that drastically reduces the time needed to setup soldering programs.
Equipped with a SMEMA compatible board conveyor system and fiducial recognition, Firefly is easily integrated into a fully automated production line. Sophisticated algorithms and fast loop control enable automatic management of printed circuit board characteristics and environmental factors, resulting in a high level of soldering quality and repeatability. Thermal control, so essential to the soldering process, is guaranteed by an integrated temperature control system that provides continuous feedback during the soldering process and displays thermal profiles clearly in real time, then stores the profiles and images of each soldered point, ensuring complete traceability of the soldering process.
