Compact Power Connector is Now V-Lock Compatible
SCHURTER'S popular KEA series provides simple and cost effective cord retaining solution

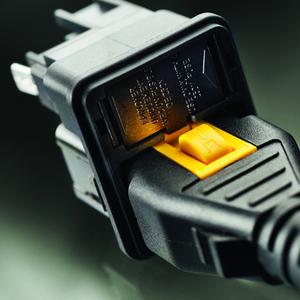

Unlike wire bail or clamp accessories, no additional costly hardware is necessary to install the cord retaining system. The cordset safely latches into a notch in the plastic housing of the KEA. Removing the cordset is easily achieved by depressing the latch. V-Lock power cords are offered in a wide range of cord lengths and country-specific plugs, including NEMA 5-15 standard hospital grade versions.
The KEA is ideal for use in medical devices, IT and audio equipment used on stage, where the power to the equipment must withstand mechanical stress on the cord. It features C14 inlet, 1- or 2-pole fuseholder for 5x20mm fuses, 4.8 x 0.8mm quick-connect or PCB terminals, and screw-on or snap-in mounting. Optional voltage selector allows for use in international markets. Current rating is 10 A at 250 VAC. Approvals include UL, CSA, VDE and CCC.
Features and benefits:
- IEC appliance inlet C14
- 10 A / 250 VAC; 50/60 Hz
- 1- or 2-pole fuseholder for fuse-links 5 x 20 mm
- Optional voltage selector
- Standard V-Lock feature
- Datasheet KEA
- Datenblatt KEA-Print
- Web-Selector Cord Sets
- Web-Selector Power Entry Modules without Filter
- Web-Selector Power Entry Modules with Filter
- Web-Selector Connectors Inlets /- Outlets
