high-sensitivity 1.4 megapixel GigE Vision CCD camera, 30 fps

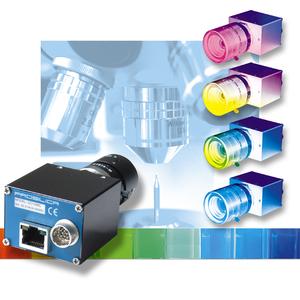

Prosilica GC1380H / GC1380CH

(PresseBox) (München, ) The GC1380H, and its color counterpart, the GC1380CH, are high-speed versions of the very popular GC1380. The ultra-compact GC1380H is a very sensitive, high-resolution CCD camera with Gigabit Ethernet interface (GigE Vision™) that runs 30 frames per second at full-resolution.
The GC1380H is the highest performance GigE Vision-based camera on the market. It incorporates the incomparable Sony ICX285 CCD sensor that uses ExView technology to provide high-sensitivity, low noise, excellent antiblooming, and superb image quality.
The camera interface uses standard gigabit Ethernet hardware and cables that can have lengths up to 100 meters (330 ft) long using conventional Cat-5e network cable.

Applications for the GC1380H include industrial inspection, machine vision, microscopy, ophthalmology, fluorescence, aeronautical and aerospace, public security, surveillance, and traffic imaging.

Features
· High resolution - 1.4 megapixel (1360x1024)
· Fast frame rate - 30 frames per second at full resolution
· High sensitivity
· Exceptional image quality
· Sony ICX285 2/3" Progressive scan CCD
· Global shutter (Snapshot shutter)
· Very small and light weight
· Gigabit Ethernet interface
· GigE Vision compliant
· Long cables - up to 100 m on network cabling
· Low noise - low dark current
· Region of Interest readout (AOI partial scan)
· Binning modes
· Asynchronous external trigger and sync I/O
· Software development Kit


RAUSCHER
Johann-G.Gutenberg-Str. 20
D-82140 Olching

Telefon 0 81 42 / 4 48 41-0
Fax 0 81 42 / 4 48 41-90

E-Mail: info@rauscher.de
www.rauscher.de


Messehinweis:
Vision 2007
Halle 4 – Stand 4C26
Stuttgart – 6. bis 8 November 2007

Wir freuen uns auf Ihren Besuch

Hersteller Prosilica / Vertrieb in Deutschland und Österreich: RAUSCHER
