Machine-Vision: Prosilica GC780 - low cost GigE Vision CCD-Camera runs 64 fps

(PresseBox) (München, )

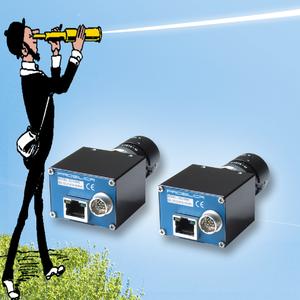

The Prosilica GC780 is an ultra-compact, economically priced, machine vision camera with Gigabit Ethernet interface (GigE Vision™). The Prosilica GC780 incorporates the Sony ICX415 CCD sensor and runs 64 frames per second at 782x582 resolution over the GigE Vision-compliant Gigabit Ethernet interface. The Prosilica GC780 works with standard gigabit Ethernet hardware and cables and can have cable lengths up to 100 meters (330 ft) long using conventional Cat5e network cabling.

Applications for the Prosilica GC780 include high-speed inspection, machine vision, image processing, optical character recognition, video-surveillance, traffic imaging, robotics, and OEM applications.


Features
· 64 fps at 782x582
· 1/2" Sony ICX415 Progressive Scan CCD
· Gigabit Ethernet interface
· GigE Vision compliant
· Very small and light weight
· Asynchronous external trigger and sync I/O
· Region of Interest readout (AOI partial scan)
· Global shutter (Snapshot shutter)
· Video-type auto-iris support
· Software development Kit for Windows, QNX, Mac-OS and Linux


Direct-Link Prosilica GC Series
http://www.rauscher.de/...


RAUSCHER
Johann-G.Gutenberg-Str. 20
D-82140 Olching

Telefon 0 81 42 / 4 48 41-0
Fax 0 81 42 / 4 48 41-90

E-Mail: info@rauscher.de
www.rauscher.de

Sales in Germany and Austria
