Machine Vision Lighting - Compact, High-Power Strobe-Controller

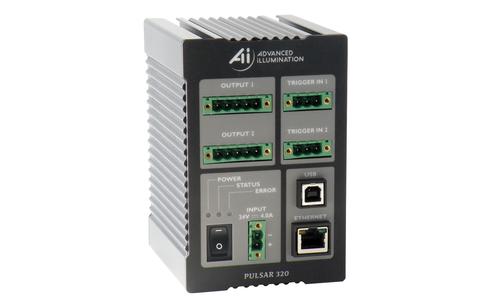

Advanced illumination Pulsar S320

München, (PresseBox) - The Pulsar 320 is Advanced illumination’s (Ai) new compact, high output, strobe only controller, designed for use in a wide variety of high-performance, timing critical operations. Capable of providing up to 50A of output through each of its 2 channels, the unit has a maximum internally-generated flash rate of 400Hz. The Pulsar 320 may be driven remotely with the built-in Ethernet IP interface, or locally with a host computer via USB2.

The Pulsar 320 housing is compact 5” x 3” x 4” - and includes a rear bracket for DIN rail mounting, as well as top and bottom M6 nut-channels. For convenience, all controls and inputs are on the front of the unit.

Strobing is used to freeze motion in high-speed inspections by creating a short burst of intense light during the camera’s short exposure period. Increasing light intensity by overdriving the LEDs provides sufficient illumination for the machine vision system, and safely extends the real-time life of the LED.


Direct Link:
http://www.rauscher.de/...


AUTOMATICA
Halle B2 – Stand 302


For more information please contact:


RAUSCHER
Johann-G.Gutenberg-Str. 20
D-82140 Olching

Phone +49 81 42 / 4 48 41-0
Fax +49 81 42 / 4 48 41-90

E-Mail: info@rauscher.de
www.rauscher.de
