e2v today announced the launch of a new standard in inspection cameras for machine vision and high performance linear imaging. The AViiVA II series of cameras features a new generation of sensors, with resolution up to 4K pixels with various pitches. Available with Camera Link interface in either 4 or 2 taps, AViiVA II delivers a dynamic range of 68 dB up to 160 MHz operation.
e2v’s AViiVA cameras have been leaders in the field of line scan imaging for over 10 years, due largely to their unique sensor technology, coupled with e2v’s expertise in CCD sensor and camera design.
‘’Our AViiVA II single-line cameras address high performance requirements in the middle to high-end line-scan camera market”, commented Christophe Robinet, Strategic Marketing Manager for Industrial Imaging Products at e2v, adding “the AViiVA II family perfectly complements the DiViiNA (for entry-level needs) and EliiXA (multi-line high-end imaging) cameras’’.
The first releases of the AViiVA II range will be the EM2 CL series, 2 tap Camera Link and the EM4 CL series, 4 tap Camera Link, operating at up to 160 MHz in standard format (higher speeds available for custom versions). The EM4 CL utilises e2v’s new single line sensors, with either 4096 pixels, 10x10 µm or 2048 pixels, 14x14 µm and is capable of line rates up to 70 kHz. More camera types are to follow, with new sensors and Gigabit Ethernet interfacing.
AViiVA EM2 and EM4 CL cameras are easy to integrate with existing system designs since they maintain the mechanical footprint of the current AViiVA models; specifically the 56 mm x 60 mm front face. The GenICam compliant interface ensures smooth operation whilst the high dynamic calibration of the camera provides for automatic or manual mode control. The camera can also be easily customised, for example with pre-processing at camera level, through its powerful FPGA.

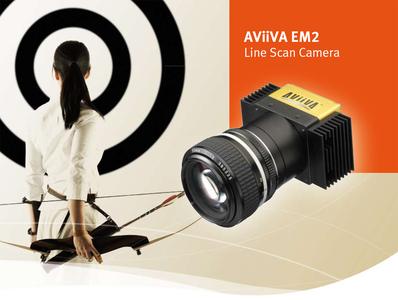

e2v AViiVA EM2
- Machine-Vision-Inspection has never been so accurate
The EM2 is the newest member of the AViiVA family of linescan cameras. It is designed to be the best choice for mid-range applications, with resolution from 2k to 4k pixels. The brand new electronics and CCD design give excellent results in term of image quality and signal to noise ratio. Coupled to a rich feature set, such as automatic FFC, LUT, or automatic tap balance, it is an ideal choice for demanding inspection applications. The EM2 benefi ts from e2v’s long experience in imaging, and the proven qualities of the AViiVA family : Ease-of-use, reliability, and high precision mechanical design.
Key features:
- Sensor range: 2048 pixels 14 ?m or 4096 10 ?m
- Excellent dynamic range ›66dB
- High Sensitivity CCD sensor
- Up to 12 bits depth
- Line rate up to 37 k lines/s
- Flat fi eld correction
- Easy confi guration
- Interface: CameraLink
- Mechanics: Compact and accurate, compatible with all the AViiVA range
Typical Applications:
- Web inspection: Metallurgy, wood, paper, textile …
- Process control: Pick and place, positionning
- Print inspection
- Sorting: Food, postal, parcel, checks …
- Surface inspection : Wafers, PCB …
- Document archiving, data archiving
e2v AViiVA EM4
- the precision instrument for high-speed inspection
The AViiVA EM4 sets new standards for line scan cameras in term of speed and image quality. With resolutions of up to 4096 pixels, and the design of new CCD image sensors, it delivers state of the art performance, without compromise. Its comprehensive built-in feature, including automatic FCC, LUT or automatic tap balance, are positioning it as the perfect choice for high demanding machine vision applications. The EM4 benefi ts from e2v’s long experience in imaging, and the proven qualities of the AViiVA family : performance, reliability and high precision mechanical design.
Key Features:
- Sensor range: 2048 pixels 14 ?m or 4096 10 ?m
- Excellent dynamic range ›66dB
- High sensitivity CCD sensor
- Up to 12 bits depth
- Line rate up to 70 k lines/s
- Flat field correction
- Easy configuration
- Interface: CameraLink
- Mechanics: Compact and accurate, compatible with all the AViiVA range
Typical Applications:
- Web inspection: Metallurgy, wood, paper, textile …
- Process control: Pick and place, positionning
- Print inspection
- Sorting: Food, postal, parcel, checks …
- Surface inspection: Wafers, PCB …
- Document archiving, data archiving
RAUSCHER
Johann-G.Gutenberg-Str. 20
D-82140 Olching
Telefon +49 81 42 / 4 48 41-0
Fax +49 81 42 / 4 48 41-90
E-Mail: info@rauscher.de
www.rauscher.de
Sales in Germany, Austria and Switzerland
