High Definition Resolution CCD camera with GigE Vision interface - 30 frames per second!

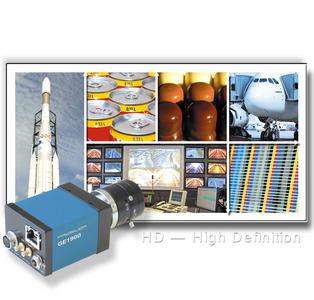

München, (PresseBox) - The 2 Megapixel Prosilica GE1900 is a high-resolution CCD camera with Gigabit Ethernet interface (GigE Vision™). The Prosilica GE1900 incorporates a high-quality Kodak KAI-2093 CCD sensor providing excellent monochrome and color image quality in HD resolution (1080p). The GE1900 runs 30 frames per second at 1920 x1080 resolution and even faster with region of interest readout. The GE1900 works with standard gigabit Ethernet hardware and cables and can have cable lengths up to 100 meters (300 ft) long using conventional Cat5e.
Applications for the Prosilica GE1900 include industrial inspection, machine vision, LCD panel inspection, medical imaging, ophthalmology, aeronautical and aerospace, public security, surveillance, traffic imaging, and OEM applications.

Features
· High resolution - 2 megapixels (1920x1080)
· Kodak KAI-2093 Progressive scan CCD
· Global shutter (Snapshot shutter)
· Extra fast frame rate - 30 fps at full-resolution
· Gigabit Ethernet interface
· GigE Vision compliant
· Long cables up to 100 m on network cabling
· Region of Interest readout (AOI partial scan)
· Binning modes
· Asynchronous external trigger and sync I/O
· 32 MB resend buffer
· Screw-captivated power connection
· Software development Kit



RAUSCHER
Johann-G.Gutenberg-Str. 20
D-82140 Olching

Telefon 0 81 42 / 4 48 41-0
Fax 0 81 42 / 4 48 41-90

E-Mail: info@rauscher.de
www.rauscher.de


Hersteller: Prosilica / Vertrieb in Deutschland und Österreich: RAUSCHER
