2/3” optical format for High Definition industrial market

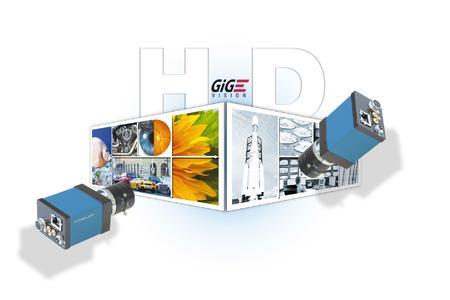

Running at 30 frames per second at full 1920 x 1080 resolution, and even faster using Area of Interest Readout (AOI), the GE1910 features the Kodak KAI-02150, a new generation of 2/3”optical format progressive scan CCD sensors that bring High Definition to the industrial imaging and machine-vision market.
The GE1910 improves upon the GE1900 in several ways: 40% greater quantum efficiency, very low smear, low noise and superior image quality. The 2/3” sensor is compatible with a very wide range of lenses.
The GE1910 has a C-mount lens mount with adjustable back focus and is available in color or monochrome models.
The HD-camera is ideally suited for applications such as industrial inspection, machine vision, LCD panel inspection, medical imaging, ophthalmology, aeronautical and aerospace, public security, surveillance, traffic imaging, and OEM applications.
Features
· 2/3" format - HD resolution (1920x1080)
· Kodak KAI-02150 Progressive scan CCD
· Global shutter (Snapshot shutter)
· Fast frame rate - 30 fps at full-resolution
· Gigabit Ethernet interface
· GigE Vision compliant
· Long cables up to 100 m on network cabling
· Region of Interest readout (AOI partial scan)
· Binning modes
· Asynchronous external trigger and sync I/O
· 32 MB resend buffer
· Screw-captivated power connection
· Software development Kit
RAUSCHER
Johann-G.Gutenberg-Str. 20
D-82140 Olching
Telefon 0 81 42 / 4 48 41-0
Fax 0 81 42 / 4 48 41-90
E-Mail: info@rauscher.de
www.rauscher.de
