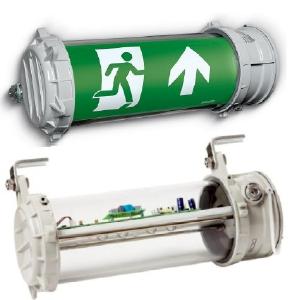

LED emergency exit and escape route light fittings

Newest technology for emergency and escape route luminaries encapsulated within a flame proof enclosure for use in hazardous areas Zone 1

(PresseBox) (Lauda-Königshofen, ) The Ex approved emergency exit and emergency escape route luminaries are equipped with modern, light-weight and maintenance-free LED technology. They are supplied with a rechargeable battery which is monitored, tested and carefully charged by the intelligent charging electronics.

Further, a version without a battery, powered by a central emergency supply, is available. Areas of application are escape doors, emergency exits, emergency routes and all areas where light is still required after a power failure.
The emergency lights are supplied with ready-to-connect cable routing and are therefore to be installed quickly. Up to two line bushings or cable glands are possible. Thus, several emergency lights can also be connected in parallel.

Technical data

Dimension: 430x174x210mm
Mounting : 345mm / 2 x 10Ø
Ingress protection: IP66
Temperature range: -20°C…+40˚C
Voltage: 230V/50Hz

Emergency exit
Recognition distance : 25m
Battery operation : 17mA/2W;4VA
Without battery : 7mA/0,7W;1,5VA

Emergency escape route luminaries
Luminous flux: 440lm
Battery operation : 50mA/7W;13VA
Without battery : 65mA/7,5W;15VA

To get this material fast you can order them in our web shop or by email from stock.
You reach the web shop page here-->

Or you see detailed data and manual on our homepage here-->
