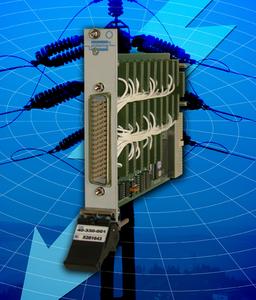

Pickering Interfaces is expanding its range of PXI switch solutions with the introduction of the 40-330 SPST Power Relay Module, supporting both high current and high voltage switching applications.
The 40-330 provides 24 off SPST switches each capable of switching currents up to 4A and hot switching voltages up to 250VAC. The cold switch rating of 1000V peak permits the 40-330 to be used for high voltage test applications where hot switching is not required. User connections are provided on a 50 way male high voltage D Type connector.
The 40-330 is supported by any PXI compliant 3U chassis and can be supported by the Pickering Interfaces LXI Modular Chassis where an LXI control environment is required.
The module is supplied with software support for all the most common programming environments.
Pricing and availability information is supplied on our web site www.pickeringtest.com
Innovative Aerospace PXI and LXI Solutions
PXI has proved very popular in many demanding military and commercial Aerospace test applications: PXI helps create smaller, faster test solutions and it makes the job of specifying and integrating test stations easier.
Pickering provides Avionics Bus interface cards, programmable power supplies, arbitrary waveform/function generators, 71/2 digit DMMs, digitizers, signal conditioning, high current switching, sensor simulators, switching matrices and a wide range of PXI Chassis.
The LXI platform has allowed Pickering to address new applications that could not be easily addressed by other platforms. The benefit to our Aerospace customers is a test solution that is often smaller, at a lower cost, and exhibiting improved specifications.
When designing functional test applications, Aerospace companies like Lockheed Martin, Northrop Grumman, Boeing, BAE Systems, Smiths Industries, Goodrich, Rockwell Collins, Raytheon, Honeywell, Hamilton Sundstrand, Bombardier, and Sikorsky have implemented Pickering solutions all around the globe.
