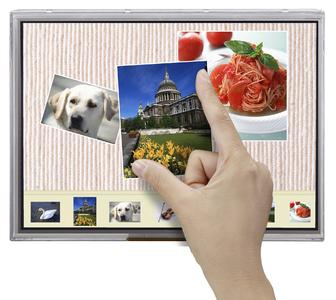

NLT Technologies projective capacitive (PCAP) touch panel displays now available in more than 30 different versionsStutensee, )
NLT's advanced PCAP touch panel technology is also used in applications where the use of touchscreens was previously precluded, for example due to safety reasons. Among others, an important feature is that the touch surface is flush with the outer edges of the display. In many cases, this simplifies installation into the finished equipment. The diamond pattern x/y single glass design is based on an Atmel® maXTouch Controller. The operating surface is a 0.7 mm thick cover glass, with anti-glare and anti-fingerprint coating, bonded to the sensor. A GUI based tuning software supports the user with setting the main parameters and thus simplifies the integration.
In the standard version, the sensor is fully sealed with the display and the gap is filled with air. The anti-glare and anti-fingerprint treated cover glass is optical adhered to the whole area of the sensor. Optionally, completely optical bonded touchscreen versions are available. In this case, the space between LCD and touch sensor is also filled with a highly transparent adhesive. This results in a visible reduction of surface reflections and thus improves readability especially in unfavorable lighting conditions which frequently occur in outdoor applications. For correspondingly large order quantities, display versions with PCAP touch panel technology can also be provided with customer-specific printed coverglass or with additional optical features.
Detailed information about display versions with PCAP touch panel technology can be requested by sending an email to email@example.com.
MSC Technologies can be found on the embedded world show in hall 2, stand 2-130.
