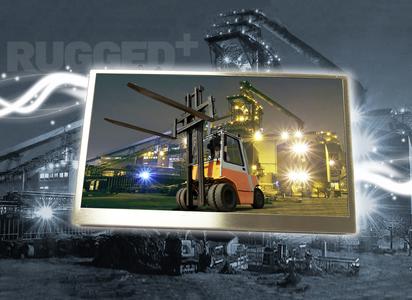

MSC Technologies, an Avnet company (NYSE: AVT), is presenting a particularly high-quality 6.5 inch (16.5 cm) WVGA Rugged+ display from KOE Europe. The new 6.5 inch display (part name TX17D200VM0BAA) is designed to function reliably under rigorous operating conditions found, for example, in industrial, marine, aerospace and medical applications with demanding optical and mechanical requirements.
The TX17D200VM0BAA, which is based on KOE's innovative in-plane-switching (IPS) technology, has a 16:9 wide aspect ratio and is the newest member of KOE's Rugged+ display lineup. Its features include wide viewing angles of 85 degrees in all directions (up, down, left, right). A WVGA (800 x 480 pixels) resolution, a 700 cd/m² brightness and a contrast ratio of 600:1 ensure that display images are bright, clear and uniform.
As with all members of the Rugged+ display lineup the TX17D200VM0BAA is, to a large extent, resistant to extreme mechanical shock and intensive vibration. The 6.5-inch display module has mechanical outline dimensions of 154.8 mm (w) x 92.7 mm (h) x 10.2 mm (d) and the operating temperature range is from -30°C to +80°C. The high-quality white LED backlight has a 70,000 hour half-brightness lifetime.
The TX17D200VM0BAA features a 20 pin LVDS data interface supporting 6-bit RGB which enables a color palette of up to 262,000 colors. Detailed information about the new 6.5 inch WVGA Rugged+ display (part name TX17D200VM0BAA) can be found at www.msc-technologies.eu/..., samples can be requested by sending an email to info@msc-technologies.eu.
The TX17D200VM0BAA, which is based on KOE's innovative in-plane-switching (IPS) technology, has a 16:9 wide aspect ratio and is the newest member of KOE's Rugged+ display lineup. Its features include wide viewing angles of 85 degrees in all directions (up, down, left, right). A WVGA (800 x 480 pixels) resolution, a 700 cd/m² brightness and a contrast ratio of 600:1 ensure that display images are bright, clear and uniform.
As with all members of the Rugged+ display lineup the TX17D200VM0BAA is, to a large extent, resistant to extreme mechanical shock and intensive vibration. The 6.5-inch display module has mechanical outline dimensions of 154.8 mm (w) x 92.7 mm (h) x 10.2 mm (d) and the operating temperature range is from -30°C to +80°C. The high-quality white LED backlight has a 70,000 hour half-brightness lifetime.
The TX17D200VM0BAA features a 20 pin LVDS data interface supporting 6-bit RGB which enables a color palette of up to 262,000 colors. Detailed information about the new 6.5 inch WVGA Rugged+ display (part name TX17D200VM0BAA) can be found at www.msc-technologies.eu/..., samples can be requested by sending an email to info@msc-technologies.eu.
