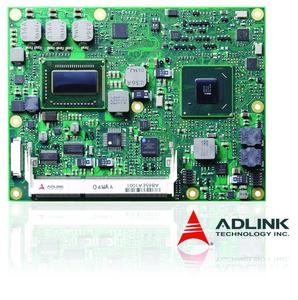

ADLINK COM Express® Type 6 Module with high-performance integrated graphics for medical, gaming and military applications
The Express-HR features a quad/dual core Intel® Core(TM) i7 / i5 processor with the Mobile Intel® QM67 Express chipset to provide enhanced overall performance
The Express-HR features the Intel® Core(TM) i7/i5 processor supporting Intel® Hyper-threading Technology (4 cores, 8 threads) and up to 16GB of DDR3 dual-channel memory at 1066/1333 MHz on dual stacked SODIMM sockets to provide excellent overall performance. Intel® Flexible Display Interface and Direct Media Interface provide high speed connectivity to the Mobile Intel® QM67 Express chipset. Intel® HD Graphics is integrated on the CPU and a PCI Express x16 bus is available for discrete graphics expansion or general purpose PCIe (optionally configure as 2 x8 or 1 x8 + 2 x4).
New with the Type 6 module are three Digital Display Interface (DDI) ports supporting HDMI, DVI and DisplayPort outputs, in addition to legacy VGA and dual-channel 18/24-bit LVDS displays. The Express-HR is specifically designed for customers with high-performance processing and graphics requirements who want to outsource the core logic of their systems and focus on their core competency for reduced development time.
The Express-HR features Gigabit Ethernet, up to eight USB 2.0 ports, two SATA 6 Gb/s ports and two SATA 3 Gb/s ports (RAID 0/1/5/10) and support for SMBus and I2C. The module is equipped with SPI AMI EFI BIOS supporting remote console, CMOS backup, hardware monitor, and watchdog timer.
To accelerate your product development, the ADLINK provides a wide range of tools to accompany the Express-HR, including the COM Express Type 6 Starter Kit that allows you to proceed with carrier board design and software verification simultaneously, the T6-DDI Video Adapter Card that provides easy access to the Express-HR's DDI ports, the PCIe x16-to-two-x8 Adapter Card, an the LPC POST Debug Board. ADLINK's complete range of COM Express engineering test tools will expedite your application development.
For more information, please go to http://www.adlinktech.com/....
