PolyIC presents sensor technology for complex industrial applications

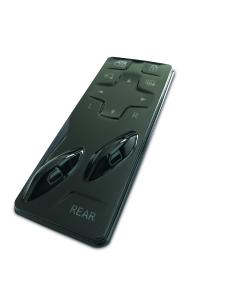

Automotive door control unit with futuristic design
Secure, functional, easy to use and aesthetically designed - PolyIC will be demonstrating how all of these requirements can be met concurrently with the help of an automotive door control unit demonstrator. For safety and security reasons, it is not possible to implement the window lifter function of a car as a conventional touch operation. PolyIC, together with its parent company Kurz and its technology partners Kunststoff Helmbrechts and GE-T, therefore developed a control unit based on capacitive sensor technology which possesses characteristics of mechanical buttons. The surface of the control unit has been shaped three-dimensionally in such a way as to protect the capacitive switch from unintentional operation, while also being easy to locate by touch. It also provides haptic feedback for easy operation without eye contact. Visually, the control unit shines with its seamless, curved design and a disappearing effect when the illumination is inactive.
PolyTC sensors suitable for 3D geometries
The full-featured control unit was implemented using sensor technology from PolyIC. PolyTC capacitive touch sensors were inserted into the plastic cover as flat sheets and integrated by Functional Foil Bonding (FFB). FFB is a patent pending process from Kurz that enables touch sensors to be fully mechanically and cost-efficiently integrated into plastic parts. The special feature of the application on display at the trade fair booth is that the flat sensors were shaped during the FFB process to match the 3D geometry of the plastic parts.
PolyTC sensors comprise silver-based metallic grid structures (metal mesh) on a PET carrier. They are mechanically robust and flexible, which allows them to be integrated not only into flat but also slightly three-dimensional parts by FFB. They are also highly conductive and sufficiently transparent to fulfill the optical requirements of a wide range of touch displays.
The deformability of the sensors will be illustrated with a further demonstrator that will be presented at the trade fair booth: a concept cover in the form of an automotive roof control unit. The IMD Varioform process that was recently developed by Kurz was employed to produce the concept cover. Using this process, a backing film was formed, back-injected, stamped, decorated, and equipped with PolyTC sensors, all in a single injection molding cycle. The design was transferred in a roll-to-roll process by IMD Varioform, and the touch sensor integrated into the rear by means of a preformed 3D insert. The PolyTC sensors were able to be shaped to match this part, which has a pronounced recess in the center, while still reliably retaining their functionality.
Diverse functions under a seamless surface
A further highlight at the PolyIC booth will be a demonstrator of an HMI (Human Machine Interface) instrument panel that features versatile functions and light elements concealed under a seamless decorative surface. The panel is equipped not only with a touchscreen but also a touch panel. The touch panel is used to control a backlighting function that is integrated into the design and produces an interplay of illuminated and non-illuminated design elements. Deactivating the illumination creates a disappearing effect and an opaque solid surface design.
The touchscreen display, which is over 900 millimeters in length, was implemented as a single image and incorporated by means of the IMD (In-Mold Decoration) process during injection molding. A transparent PolyTC sensor was applied to the rear of the touchscreen by IML (In-Mold Labeling) in the same injection molding cycle. In addition, the PolyTC sensor for the touch panel was integrated into the finished plastic part by FFB. The HMI instrument panel demonstrates the wide range of functionality that can be achieved using PolyTC sensors, and how they can be integrated flexibly and reliably using highly efficient processes.
Surface decoration, sensor technology, and integration technology from a single source
These and other demonstrators at the PolyIC booth at Embedded World and LOPEC will showcase the capabilities of this Kurz Group technological alliance. Kurz has at its disposal a diverse selection of technologies, several of them patented, for decorating plastic parts with touch panels and backlit surfaces. PolyIC provides the necessary sensor technology with its highly conductive, transparent and flexible sensors that can be integrated both into flat and three-dimensional parts. Kurz subsidiary Baier develops suitable machines for cost-effectively and reliably integrating the sensors by FFB.
About the company: PolyIC GmbH & Co. KG is a fully owned subsidiary of KURZ that develops and markets products based on the technology platform of transparent and conductive films (brand name PolyTC®). This technology enables PolyIC to offer touch sensors and other functional applications for touchscreens, as well as all kinds of capacitive buttons. For further information visit: www.polyic.com and www.plastic-decoration.com.
