Infrared emitters save energy in powder coating of alloy wheels
Infrared emitters for heating surfaces
Powder lacquers and coatings are often used to coat metal components and structures. The coating is applied as a powder, is melted under heat and then cured. Infrared systems transfer heat without the need for a transfer medium, by means of electromagnetic radiation which generates heat primarily in the material to be heated.
Infrared heat is transferred quickly and at high power and, in most cases, results in a significantly smaller oven or faster production.
Electric Infrared Saves Time and Energy.
A global supplier of alloy wheels for the automotive industry uses infrared to coat its wheels. During a recent re-organisation, the hot air oven, which had previously been used was replaced by a Carbon Infrared (CIR®) system from Heraeus Noblelight. Infrared is readily absorbed by the powder and the mass of powder is heated very quickly, so that the powder is gelled significantly faster than in the hot air oven. And, as there is no air movement, the introduction of dust particles is eliminated and the powder is not swirled around or spread. Rapid melting improves the lacquer quality and allows faster production speeds.

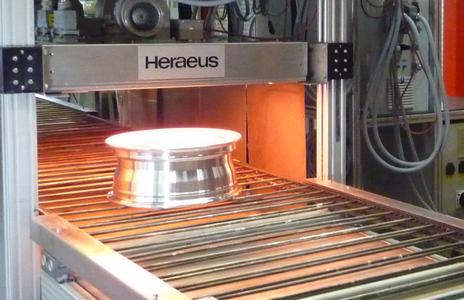

The new infrared oven for aluminium wheels can be adjusted for different burn-in times, allowing rapid product change-overs. In addition, short wave and Carbon infrared emitters have very fast response times, of the order of seconds. Consequently, the heating can be controlled and by connecting with an additional temperature controller, over-heating of the material can be prevented. In addition, energy is saved, as the heating source is switched on only when required.
Gas Catalytic Infrared Oven
Gas catalytic elements convert natural or propane gas into water and carbon dioxide by means of a special platinum catalyst which releases long- to medium-wave infrared radiation. This flame-less reaction is different from conventional gas infrared systems, where the gas is combusted.
Powder coatings on metal parts can be cured exceptionally well by using gas catalytic infrared ovens. The design of the oven is matched to product so that the radiation can be optimally utilized for gelling and curing. Very often the gas catalytic oven is located immediately in front of a hot air oven, so that the powder is gelled before being cured by the hot air. With respect to conventional hot air ovens, gas catalytic ovens from Heraeus Noblelight distinguish themselves by their high energy efficiency and small footprint.
