Conceptual Infrared Heat - The New MAX Infrared Oven for Efficient Industrial Solutions
MAX - precisely tailored for maximum customer benefit
Juergen Weber, development project manager at Heraeus Noblelight, explains, "As they reach their maximum temperature within a very short time, the new MAX ovens flexibly meet customer requirements.' The new oven can achieve a maximum product temperature of 900°C in less than ten minutes and can also cool down in less than ten minutes. This allows fast product change-over. The oven can also be used in both continuous and batch operation. All MAX infrared ovens feature a compact construction, which utilizes the energy significantly more efficiently, because the infrared radiation is optimally reflected within the oven, which also uses natural convection. As a result, the process time can be reduced, significantly increasing energy efficiency and lowering operating costs.
MAX Infrared ovens - extremely energy-efficient

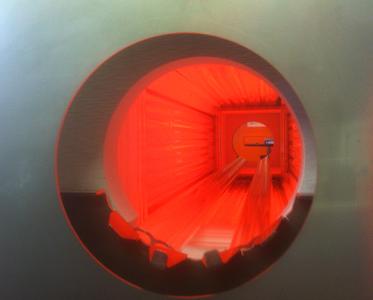

MAX infrared ovens are currently used in Heraeus' in-house application center for intensive trials on customer materials. "Coating metal plates or glass tempering are particularly energy-intensive processes creating enormous electricity costs," continues Juergen Weber. "Our tests show that this new design of oven can save a third of this energy or more." One of the ovens, with a heated length of 700mm and a chamber cross section of 150x150mm achieves the maximum emitter temperature in less than a minute when working in a continuous process. In constant operation at a holding temperature of 900°C, a holding power of around 3kW is all that is required because of the exceptional energy-efficiency. In addition, it has been shown that an extremely good homogeneity can be achieved with a temperature difference within the product of only +/- 2°C.
Advantages of QRC® Material Over Standard Ovens
Tests demonstrate clear advantages over standard ovens, which use fireclay as the insulation material. In MAX infrared ovens quartz glass materials with QRC® nano-reflectors (QRC = quartz reflective coating) are used exclusively inside the oven. The QRC® reflector, developed by Heraeus, features opaque, white quartz glass. Its nanostructure imparts a diffuse reflective capability to the material, resulting in a very high homogeneity of the temperature field. Quartz glass is extremely heat-resistant and widely resistant to the attack of acids and other aggressive substances. It has excellent mechanical stability, even at very high temperatures.
From simulation to final solution
MAX infrared ovens enable system solutions. Computer simulations at the design phase help to create an energy-efficient heating process. MAX oven elements can be arranged one after the other in modular fashion and individually controlled, allowing fast product change-over. In addition, the ovens can be easily connected with conveyor systems.
Infrared emitters can be precisely matched to product and process, saving energy and cost. Infrared heating should always be considered for heating processes which have important requirements in terms of space, time or quality. Heraeus offers infrared emitters, controllers and handling solutions to meet these requirements.
