DIN 41612 Type 3Q / 3R - even more compact, and just as rugged

Especially suitable for use with downsized circuit boards

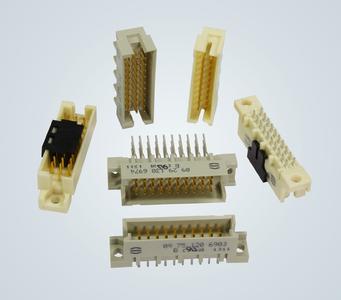

Espelkamp, (PresseBox) - With immediate effect, HARTING is offering male connectors with the new 3Q and 3R designs per DIN 41612. Especially in control and automation technology, the density of electronics is rising dynamically and calls for increasingly miniaturized components. At the same time, industrial clients prefer process-secure, rugged components for PCBs that are being increasingly downsized. Here, HARTING offers ideal solutions.

This trend is resulting in the need to use smaller and smaller connectors. All male connectors are therefore available with or without flange, whereby the space requirement is reduced even further. The new male connectors in build type 3Q and 3R are especially suitable for use with mezzanine and cable to circuit board applications together with type 3B and 3C female connectors.

The new connectors are available for soldering technology, SMC (Surface Mount Compatible) or press-in technology. The connectors each offer 20 or 30 contacts in a compact 2.54 mm grid space and can handle currents of up to 2 A per contact. The connectors are tested in accordance with IEC 60603-2.

The versions made of high-temperature material (SMC) are particularly suitable for processing in the reflow soldering process. The male connectors without flange are particularly space-saving . The connectors retain the proven robustness of the DIN 41612 connector preferred by so many users. In addition to the standard versions, HARTING offers customized loading configurations.

Be sure to visit us at this year's "electronica" trade fair, taking place in Munich from November 11 to 14, 2014 (Halle B3, Stand 542) and experience our product novelties first hand.
