Distec presents a robust, sunlight readable 7-inch TFT display from Ortustech
Distec's IF420-00 adapter board extends the COM70H7M24ULC with interfaces and drivers for optimum control
Durable in harsh environments
The compact display with WVGA resolution (800x480) features a brightness of 400cd/m². The long-life LED backlight promises a lifetime of 100,000 hours. This corresponds to a period of more than 11 years of continuous operation before reaching half the original brightness. With an operating temperature range of -30 to +85 °C, the COM70H7M24ULC withstands frost and heat easily and is the perfect solution for mobile devices and outdoor use. An optional glass cover protects the display surface from scratches, prevents the ingress of dirt and allows for easy cleaning with conventional cleaning agents. "Upon request, we can optically bond a corresponding protective glass and/or a touchscreen on the display, using our own VacuBond optical bonding process," added Leonhard Spiegl. "The optical gel we use for bonding stabilizes the unit, absorbs shocks, and increases its robustness even more."

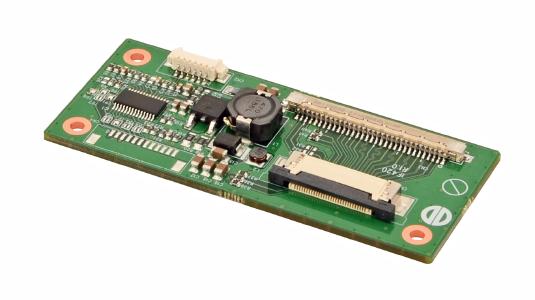

IF420-00 adapter board improves connectivity
The display is controlled via flex cable with an LVDS interface. To simplify the direct connection to a graphics card, Distec provides the adapter board IF420-00 for easy control: It converts the interface of the display to a standard LVDS and backlight interface and also features an on-board driver for the LED backlight. The IF420-00 is suitable for the COM70H7M24ULC and also for Ortustech's connection-compatible 5-inch display COM50H5N01ULC. On request, Distec supplies the IF420-00 already mounted on the back of the TFT display as a complete solution.
