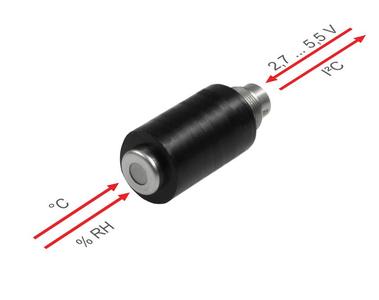

The new digital B+B humidity and temperature module DHYT BB939-01 with I²C communication interface has been developed to optimally fit in process monitoring and automation applications. Amongst others it applies perfectly in autoclaves and dryer systems.
The Humidity-Temperature module is pressure proof up to 16 bars and is dew resistant. The sophisticated precise and temperature compensated calibration process guaratees a tolerance down to ± 1,8 % RH. Up to 112 modules can be addressed on the I²C bus (7 bit address). Integrated in a robust armature, the modules are easily exchangeable. They are chemically resistant and present no outgassing. The DHYT is based on a high quality microsystem and a capacitive polymer sensor element. The TO39 housing is equipped with a stainless steel filter. It fits in applications from medical devices to drying systems
Thanks to the integration of the sensor module in customer specific housing, a rapid and easy exchange in case of disturbance is guaranteed.
Features
- Pressure resistant up to 16 bars
- Precise calibration
- Dew resistant
- Temperature compensated
- I²C Interface
- Small hysteresis
- Easy exchangeability
Applications
- Machine and plant engineering
- Environment engineering
- Medical devices engineering
- Dryer systems
