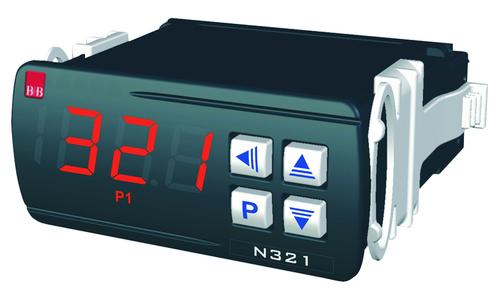

The N321 temperature controller is used to measure, display and control the temperature in many different systems and applications. It accepts 4 sensor types: Pt100, Pt1000, NTC or Thermocouples type J, K or T. It offers an excellent price to performance ratio. The user can program the control action according to the application: direct action (refrigeration) or reverse action (for heating). The internal 10 A relay can directly control compressors (cooling) or electrical heaters (heating). The control behaviour is ON/OFF mode. The controller is CE (European Union) and UL (United States and Canada) certification compliant.
Special Features
- Universal Input
- Measuring range from -200 to +1000°C, depending on sensor type
- Resolution 0,1°C from -19,9 to 199,9°C
- Device accuracy ±0,5°C to ±2°C depending on sensor type
- Ingress Protection IP65 on the front
- Sampling rate: 1,5 / sec
- Adjustable hysteresis
- Flexible power supply with wide range power supply
- Digital communication over RS485 with Modbus-RTUProtocol (optional)
For further information visit www.bubthermo.de
