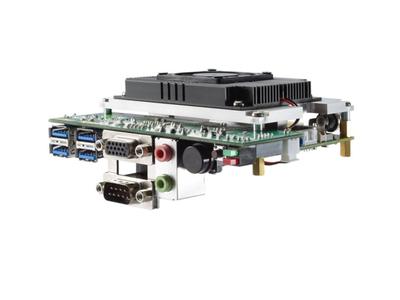

Axiomtek, one of the world's leading designers and manufacturers of innovative, high performance and reliable PC-based industrial computer products, announced the arrival of the PICO880. It supports the most advanced 4th Generation Intel® Core™ technology and one DDR3L SO-DIMM with up to 8GB.
Designed with expandability in mind, the tiny embedded board has a full-size PCI Express Mini Card slots with mSATA support. The PICO880 also provides two flexible board-to-board connectors that integrate audio, four USB 3.0, four USB 2.0, one PCIe x1, one DisplayPort, two UARTs, LED, and power on/off interfaces.
The PICO880 is equipped with standard features such as one DDR3L SO-DIMM that supports up to 8 GB memory capacity; one USB 2.0 port; Intel® AMT 9.5 support; one SATA-600 interface, one 10/100/1000 Mbps Ethernet port that supports Wake-on-LAN, RPL/PXE; one DisplayPort and LVDS display interface with Intel® integrated GFX graphic engine that delivers great 3D visual performance. The PICO880 also offers two optional expansion boards, AX93275 and AX93276 for additional RS-232/422/485, USB 3.0, HDMI, VGA and LAN ports. This outstanding embedded SBC runs well with Windows® 7 and 8 operating systems. It is a perfect fit for vehicle PCs, small media entertainment systems, industrial automation systems, medical imaging, gaming and small electronic devices customers.
Main Features:
- 4th Generation Intel® Core™ i7/i5/i3 and Celeron® processors
- One DDR3 SO-DIMM supports up to 8 GB memory capacity
- Intel® AMT 9.5 supported
- 18/24-bit single/ dual channel LVDS and DisplayPort
- One full-size PCI Express Mini Card slot with mSATA support
- Four USB 3.0, four USB 2.0
- 2 optional I/O boards, AX93275 and AX93276
For further product information:
PICO880
