Advantech Highly Secure Micro-ATX Industrial Motherboard for ATM/KIOSKs

Powered by Advantech SUSIAccess, Acronis and McAfee

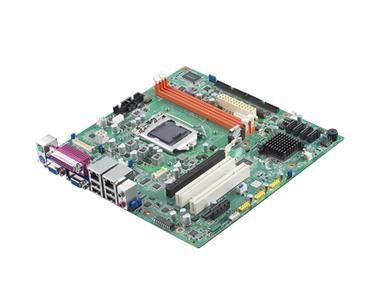

AIMB-501
(PresseBox) ( Munich, )
Advantech, the embedded platform and integration services provider introduces AIMB-501, a new industrial-grade Micro-ATX motherboard powered by a 3rd generation Intel® Core(TM) i processor. Advantech also integrated their new SUSIAccess 2.0 Pro version with AIMB-501. SUSIAccess 2.0 features remote management and integrated McAfee security and Arconis system recovery functions that empower AIMB-501 to fulfill security and management demands in the sensitive in ATM/KIOSK market.

Remote Device Management -SUSIAccess Pro V2.0 inside

AIMB-501 is pre-loaded with SUSIAccess Pro 2.0 providing intelligent remote device management and monitoring. With SUSIAccess Pro 2.0 on your device you can remotely switch machines on and off, access the desktop, recover a system and configure protection features. SUSIAccess Pro 2.0 includes McAfee's banking-level security for system protection. And with Acronis' No.1 backup and disaster recovery data protection solution on AIMB-501, you can confidently access your data anytime, anywhere. AIMB-501 with SUSIAccess Pro V2.0 is not only an industrial motherboard but also a solution kit which offers security, remote management, fast boot up, robust operation, rich I/O and multiple display features for any ATM/KIOSK application.

Maximum Connectivity for Minimum Resources

AIMB-501 comes with high connectivity and expansion options including: one PCI x16 expansion slot, one PCIe x1 expansion slot, 2 PCI slots, 10 x serial ports, 4 x SATA II 300 MB/s connectors, 10 x USB 2.0 ports, keyboard/mouse port, and supports 8-bit digital programmable I/O along with two BTX type Audio Jacks. Both 10 x USB & 10 x serial ports can provide sufficient connection possibilities for KIOSK/ATM system integrators to link and manage multiple peripherals. All this connectivity is packed into a space-saving, power-efficient, and cost-effective Micro-ATX form factor.

Dual Display and Excellent Graphics Performance

Powered by 3rd generation Intel Core i processors, AIMB-501's dual display output supports CRT1+CRT2, CRT1+DVI, CRT1+LVDS, (LVDS supports 3.3V, 5V, and 12V for large sized panels), which makes it suitable for integrating with panel PC solutions, and it also supports dual channel 24-bit LVDS for large sized panels. With Intel HD graphics 2000/3000 integrated onto the processor chip, this two-chip solution provides better 3D and video performance to deliver stunning graphics and imaging.

Integrated Intelligent Software API

Supported Operating Systems include Windows 7, Windows 7 Embedded, Windows XP, Windows XP embedded-hardware drivers for all these OS are readily available.

AIMB-501 Features

- Supports both Intel® 3rd and 2nd generation Core(TM) i processors
- Two 240-pin DIMM up to 16 GB DDR3 1600 MHz SDRAM
- Supports dual display: CRT1+CRT2, CRT1+DVI, CRT1+LVDS
- Rich I/O & expansion options: 10 x COMs, 10 x USB 2.0, and 8-bit GPIO, 1 PCIe x1, 1 PCIe x16, 2 PCI
- Dual channel 6W amplifier for Audio
- Embedded value added software: SUSIAccess, Acronis, McAfee supported for remote management, remote system recovery, and banking-level security for system protection.

AIMB-501 is available now, for more information, please contact an Advantech local sales office.

About Embedded Core Service

Advantech Embedded Core Services offers design-in oriented services. These streamlined solutions broadly integrate embedded boards, peripheral modules and software. This dedicated focus on Embedded Design-in services fulfills electronic engineering demands at their design-in phase, and brings benefits that shorten the design and integration cycle, minimizing uncertainty and risk. www.advantech.com/EmbCore
