(pressebox) (Nürnberg, 2024-07-03) .
Extended temperature range and wide range power input

As the successor to the BRICK i3 7100U in the industry-established BRICK series from spo-comm, the BRICK i3 N305 receives several upgrades. With a larger, extended temperature range from -10°C to +55°C and a wide range power input of 9 - 36V, the Mini-PC can be used in a wide variety of industrial applications.

Of course, in order to be able to call yourself an “industrial PC”, you also need a passively cooled, robust metal housing. The high-performance Intel® Core® i3-N305 CPU with up to 8x 3.8 GHz has integrated UHD graphics and is combined with 16GB RAM and a 512 GB SSD.

2x video output, 10x USB and 2x 2.5 Gbps LAN

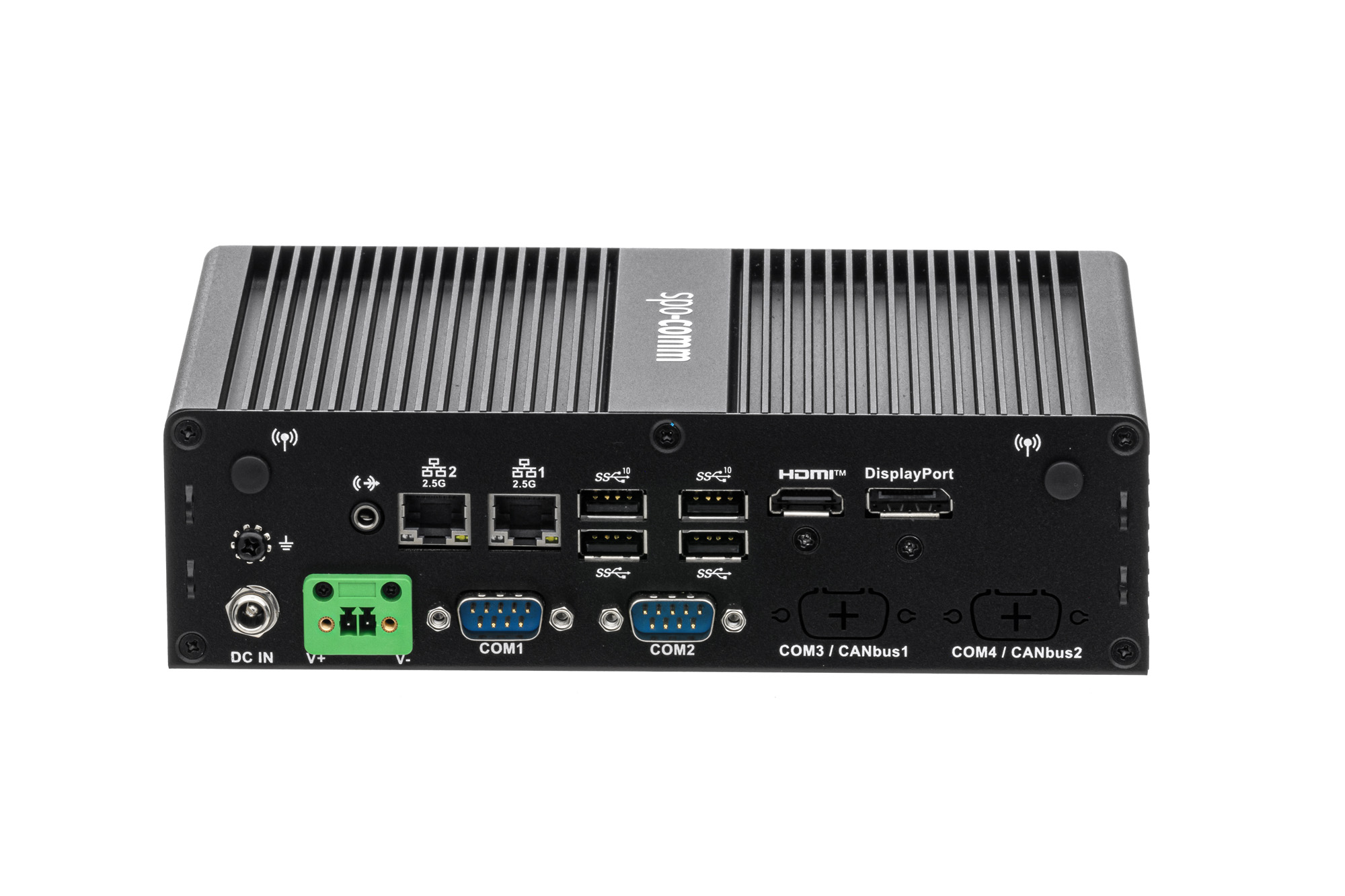

There are a variety of connections on the front and back panels of the case, which measure 55mm x 200mm x 150mm. These include two video outputs (1x DisplayPort, 1x HDMI), two 2.5 Gbps LAN ports and two COM ports (1x RS232 / 422 / 485). To connect the system to other devices and exchange data, a total of 10 USB interfaces are available, including 6x USB 2.0, 2x USB 3.2 Gen 2 and 2x USB 3.2.

Optional equipment, WiFi and operating system

The BRICK i3 N305 can optionally be equipped with WiFi or an operating system, depending on requirements. Ubuntu, Windows 11 Pro and Windows 10 IoT are available.

The BRICK i3 N305 is an industrial PC like no other. With the Intel® Core® i3-N305 processor, integrated 16GB RAM and a 512 GB SSD, the Mini-PC can be used in various industrial applications. The system is available now and can be configured and ordered according to your wishes at www.spo-comm.de.

Highlights and technical data at a glance:

• CPU: Intel® Core® i3-N305 (8x 1.8 GHz, max. 3.8 GHz)
• GPU: Intel® UHD graphics
• RAM: 16GB DDR5
• SSD: 512 GB M.2
• Max. resolution: 7680 x 4320 @ 60Hz (8K)
• 2 independent displays

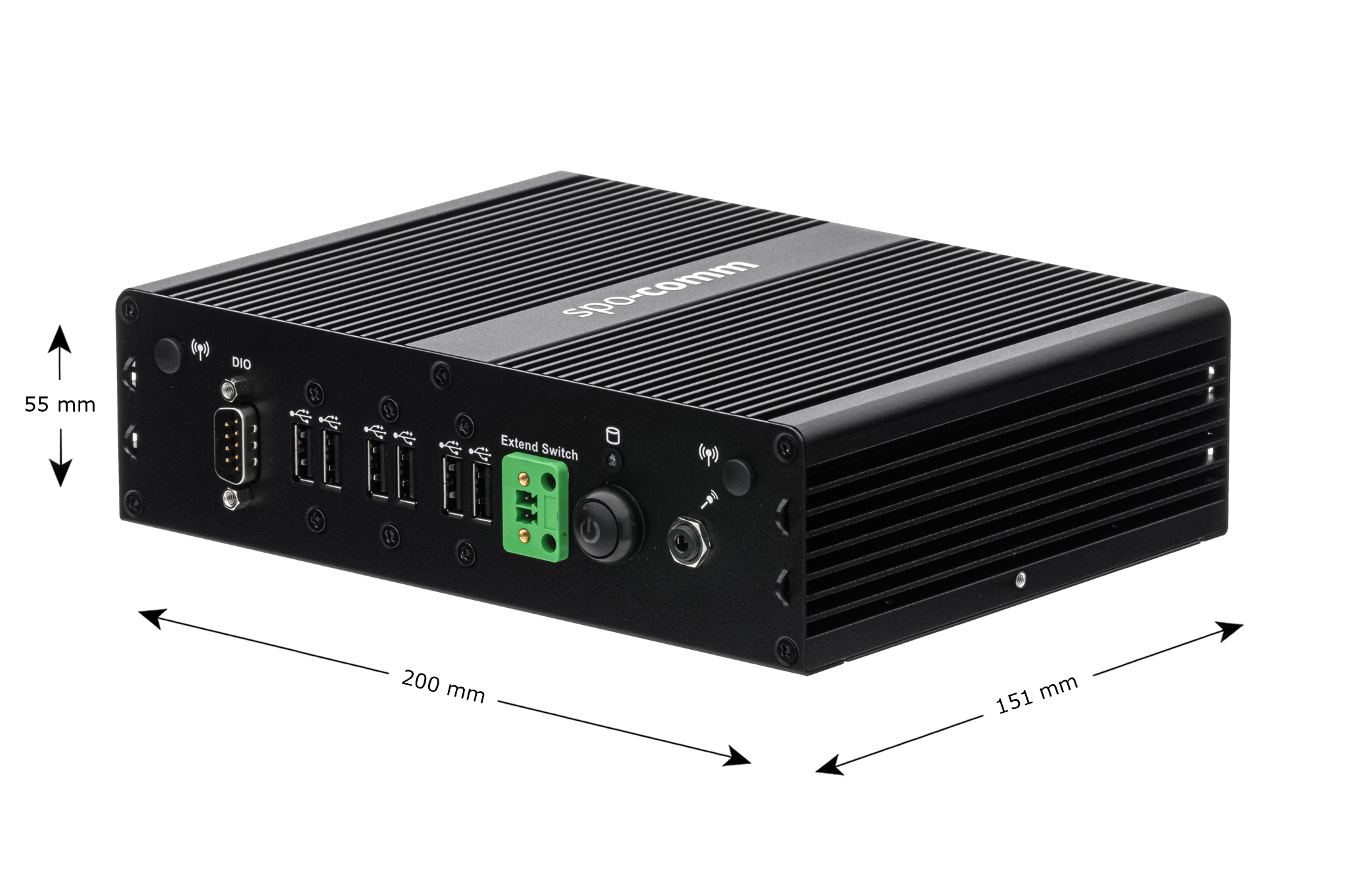

• Dimensions (H x W x D): 55mm x 200mm x 150mm  
• Passive cooling
• 9 – 36V power input
• Ambient conditions: -10°C up to +55°C at 10-90% non-condensing humidity 

Connectors: 

• 6x USB 2.0
• 2x USB 3.2 Gen 2
• 2x USB 3.2
• 1x DisplayPort 1.4
• 1x HDMI 1.4b
• 2x 2.5 Gbps LAN
• 1x COM RS232
• 1x COM RS232 / 422 / 485
• 2x Audio (Mic-In and Line-Out)
• WiFi optional
• Wall mount included

About spo-comm GmbH: Die Firma spo-comm GmbH steht seit über 15 Jahren für Mini-PCs für den professionellen Einsatz in den Bereichen Digital Signage, Industrial Control, Automation und Vehicle Computing. Von unserem Sitz in Nürnberg aus bieten wir Ihnen neben persönlicher Beratung und europaweiter Betreuung Ihrer Projekte auch Systemanpassungen aller Art an. Dank Fertigung und Lagerung in Deutschland können unsere Mini-PCs schnell und unkompliziert geliefert werden. Für den Fall, dass Sie sich mit einem unserer Modelle nicht sicher sind, besteht darüber hinaus die Möglichkeit Ihr Wunschsystem unverbindlich über einen Zeitraum von 30 Tagen zu testen.
