For exact measuring results in force measuring technology by means of strain gauges, next to picking-up the measured signal with the appropriate force sensors, the signal processing and amplification by measuring amplifiers plays an important role in the overall measurement process. As a specialist for the force-sensing measuring technology, Müller Industrie- Elektronik has developed a device series with device components optimally matched to each other for the strain gauge force measurement as an application-oriented solution. For the signal processing as cost-effective alternative to transmitters that are directly integrated in the sensor case, digital strain gauge amplifiers with HART communication in stand-alone housing are available. This allows to convert the trouble-prone strain gauge bridge signals (sensor input: 1x full bridge, bridge connection 4-wire) of load cells and strain gauges to normalized current outputs of 4-20 mA HART for further processing with a PLC or other systems and significantly reduce the susceptibility of the signal. According to the range of application the new digital measuring amplifier for strain gauges is available in three construction forms with different electrical connection options:
More information about the strain gauge measurement technique and signal processing by Müller Industrie-Elektronik GmbH at: http://www.mueller-ie.com/...
Product features measuring amplifier for strain gauge HART

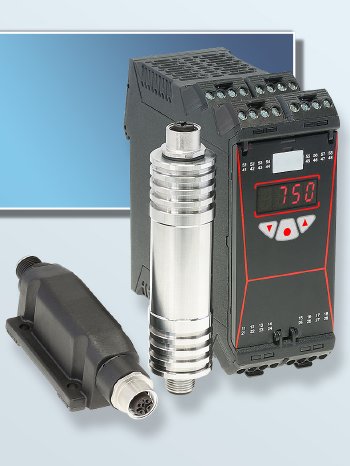

Device versions: ADHM-LC | MISG | DRMU-S4
- Device version ADHM-LC in the high-grade stainless steel pipe for the robust application in rough industrial environment with pluggable electrical connection.
- Variation MISG in mini plastic case for the space-saving installation in the smallest space for machine and plant engineering with plug and cable connection options.
- Device model DRMU-S4 in the 45-mm-wide standard rail case for top hat rail mounting in switch cabinets.
More information about the strain gauge measurement technique and signal processing by Müller Industrie-Elektronik GmbH at: http://www.mueller-ie.com/...
Product features measuring amplifier for strain gauge HART
Device versions: ADHM-LC | MISG | DRMU-S4
- Input: 1 x strain gauge full bridge, 350 ohms
- Output: 4...20 mA HART
- Electrical connection: several options
- Configuration: via software (HART communication)
- Enclosure: three construction forms available
- Total error: 0,3 % of nominal range
- Degree of protection: IP65 (IP20 at DRMU-S4)
