Ultra-Low Power Ad-hoc Wireless Mesh-Network by NeoCortec supports up to 64000 end nodes
Ideal solution for developing complex battery-driven IoT-sensor applications
NeoCortec`s unique mesh-network solution offers appliers a choice of up to three preconfigured wireless modules – disposing of a size of 11 x 18 x 2.5 mm each – for the frequency ranges 2.4 GHz ISM (NC2400), 868 MHz SRD / 915 MHz ISM (NC1000) or 433 MHz ISM (NC0400), of which each single component works as completely identical autonomous node.
Apart from the net administration the routing process occurs entirely automatic.The patented NeoCortec Speed Routing Protocol is designed for coping with complex problems in a dynamic and huge network entirely on its own. In contrast to other present-day routing protocols, the NeoCortec Speed Routing Protocol doesn`t determine the detailed way from A to B in advance. Instead the protocol detects which of the surrounding nodes is best suited for reaching the next jump target and finally the end node by accessing the “brain” of each single node. While the information is flowing through the network, the analysis of the neighboring node is used to determine the optimum route through the network. As the “brain” of the single nodes is constantly updated in real time, the way keeps on changing depending on current topology and link quality.
Especially in cases where no permanent data exchange is required – i.e. if measuring values are updated in minute or hourly intervals only – extremely long-living battery-driven IoT sensor applications can be realized with this technology. As with the help of this unique protocol the entire network can be put into sleep mode at synchronic times, battery lives of several years can be realized with an average power consumption of <20 uA.
As for the administration of the up to 64000 end nodes no central network node is needed as usually is the case for technologies used so far, the network can be modified resp. enlarged trouble-free and without any great technical effort. Thus applications in the sectors interface smart meters, decentral energy production, intelligent home networking, industry automation, logistics, agriculture, smart cities and so on, can be realized ready for the market within shortest times.

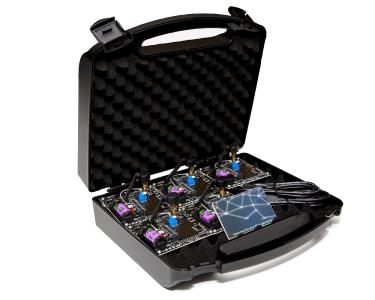

Evaluation Kits featuring five wireless modules, USB-link including two virtual COM-ports, display and a substantial package of configuration and demonstration software is available to support extensive functional testing as well as a quick start in project development.
Please ask for detailed information on the NeoCortec Ad-hoc Wireless Mesh Network concept at.
