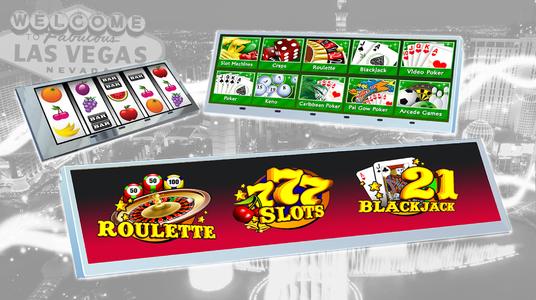

MSC Technologies presents wide aspect ratio TFT display (letter box format) from KOE

(PresseBox) (Stutensee, Germany, )
MSC Technologies, a business group of Avnet Electronics Marketing EMEA, a business region of Avnet Inc. (NYSE: AVT), presents at electronica in hall A6, stand A6.510 high performance, wide aspect ratio TFT displays (letter box format) from KOE Europe. The display modules are targeting leisure and entertainment applications including pay per play casino gaming machines. Other applications include AV equipment, consumer information systems, digital signage, retail based point-of-decision displays and industrial instrumentation.

The wide aspect ratio displays are available in three variants: 14.9 inch (37.8 cm) with a resolution of 1280 x 242 pixels, 10.2 inch (25.9 cm) with 800 x 256 pixels and 6.2 inch (15.7 cm) with 640 x 320 pixels.

The 14.9 inch TX38D25VM0CAA is based on IPS (in-plane switching) technology which provides exceptional color characteristics and wide viewing angles. The display provides a contrast ratio of 800:1 and a 16:3 wide aspect ratio with an active display area of 372.48 mm (w) x 70.42mm (h) and mechanical outline dimensions of 386.82 mm (w) x 85.5 7mm (h) x 13.06 mm (d). A white LED backlight with a specified half brightness lifetime of 70 K hours and a brightness of 450 cd/m² ensure excellent image performance is achieved. The 14.9 inch TFT employs a single channel 20-pin LVDS data interface and supports 6-bit RGB providing a color palette of up to 262K colors. The TFT display can be used in either landscape or portrait mode.

Both TX26D25VM2BAA with 10.2 inch und TX16D200VM5BAA with 6.2 inch displays feature a cost effective UWVA (ultra-wide viewing angle) technology which enables wide viewing angles and provides a display image with excellent color saturation, black levels and wide viewing angles. The 10.2 inch display features a contrast ratio of 500:1 and a brightness of 350 cd/m². The mechanical outline dimensions are 260.2 x 96.2 x 10.55 mm, the active display area is 246 x 78.72 mm. The TX16D20VM5BAA has a wide aspect ratio of 8:3 and a contrast ratio of 400:1. The white LED backlight provides a brightness of 400 cd/m².

All three letter box format display modules can be supplied with either projected capacitive (PCap) or analogue resistive touch screens.

Please visit MSC Technologies at electronica in hall A6, stand A6.510.

Website Promotion

Website Promotion

MSC Technologies GmbH

MSC Technologies, a business unit of Avnet Electronics Marketing EMEA, a business region of Avnet Inc. (NYSE: AVT) specialises in intelligent embedded and display solutions for a range of different industrial applications. MSC Technologies, based in Stutensee, Germany, represents well-known manufacturers of TFT, touch and passive displays and offers customer-specific display solutions based on in-house technologies. In the embedded sector, MSC Technologies has many years of development and production expertise that ranges from COM Express and Qseven modules through to complete systems. It also provides wireless, storage and lighting solutions. With its consulting competence and full-service offering, MSC Technologies secures a competitive advantage for its customers with premium-quality solutions and long-term availability. The solution provider's business focuses on Germany, Austria, Switzerland, Spain and Eastern Europe.

Further information under www.msc-technologies.eu
